Features:

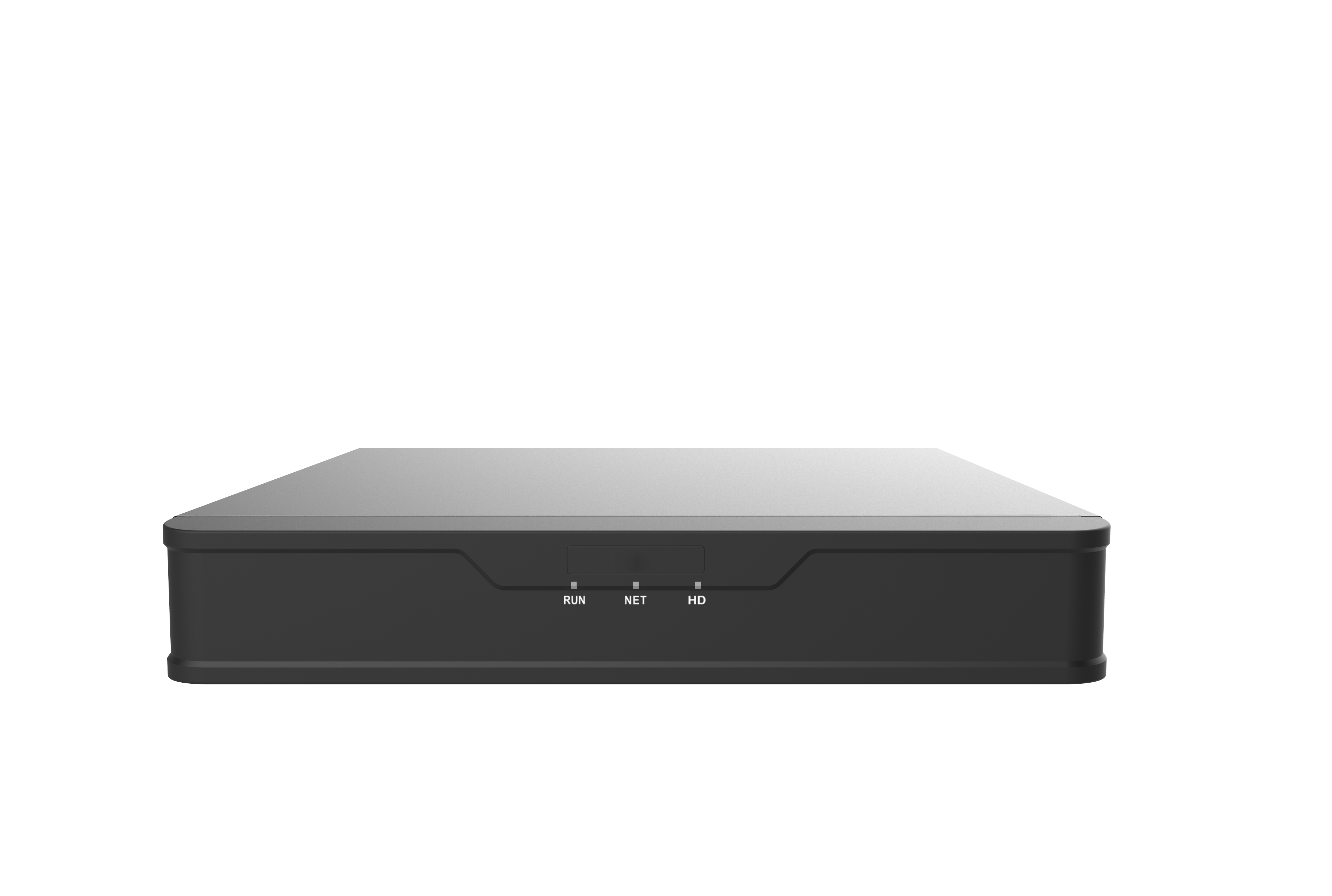

4-CH NVR

1 SATA interface

4 PoE, Mini 1U, H.265&4K

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend


*Support Ultra265/H.265/H.264 video formats

*4-channel input

*Plug & Play with 4/8 independent PoE network interfaces

*Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

*Support 1-ch HDMI, 1-ch VGA

*Up to 4K resolution recording

*1 SATA HDDs, up to 6 TB

*Support cloud upgrade


Model

VCNVR-804BA1SP

Video/Audio Input

IP Video Input

4-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

48Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

Decoding

Decoding format

Ultra265/H.265/H.264

Live view/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30

Hard Disk

SATA

1 SATA interfaces

Capacity

Up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection

VCA Search

Face search, Behavior search

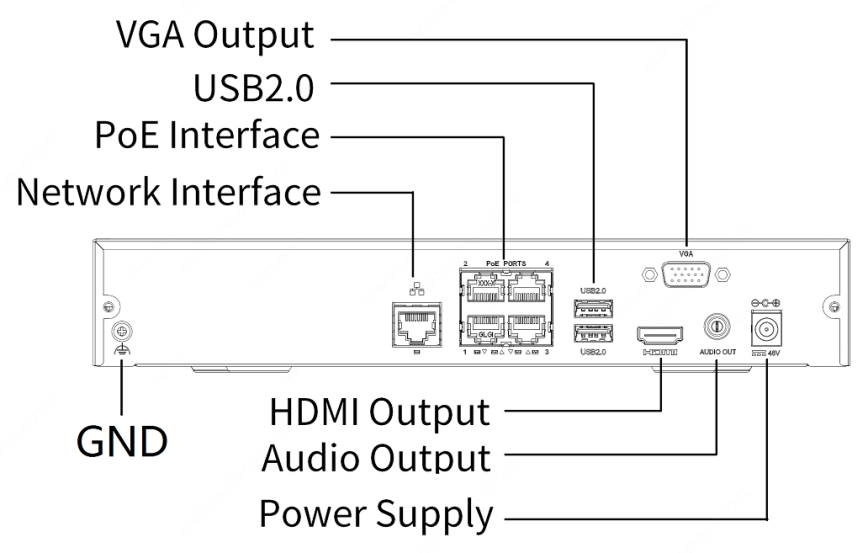

External Interface

Network Interface

1 RJ-45 10M/100Mself-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

PoE

Interface

4 RJ-45 10M/100Mself-adaptive Ethernet Interface

Max Power

Max 30W for single port

Max 54W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

48V DC

Power Consumption: 9 W (without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

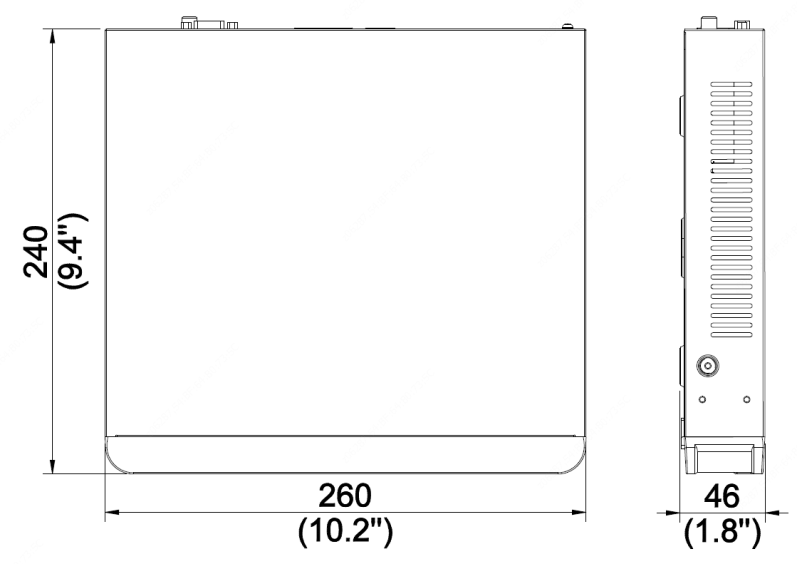

Dimensions (W×D×H)

260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")

Weight (without HDD)

≤1.1kg (2.43lb)
