*Support Ultra 265/H.265/H.264 video formats
*4-channel input
*Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
*Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
*HDMI and VGA simultaneous output
*Up to 4K resolution recording
*1 SATA HDD up to 6TB
*Support cloud upgrade
|
Model |
VCNVR-804BA1S |
|
Video/Audio Input |
|
|
IP Video Input |
4-ch |
|
Network |
|
|
Incoming Bandwidth |
64Mbps |
|
Outgoing Bandwidth |
48Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, 3.5mm |
|
Synchronous Playback |
4-ch |
|
Corridor Mode Screen |
3/4 |
|
Decoding |
|
|
Decoding format |
Ultra 265/H.265/H.264 |
|
Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 |
|
Hard Disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
up to 6TB for each disk |
|
Smart |
|
|
VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection |
|
VCA Search |
Face search, Behavior search |
|
External Interface |
|
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
|
USB Interface |
Rear panel: 2 x USB2.0 |
|
General |
|
|
Power Supply |
12V DC Power Consumption: ≤5 W (without HDD) |
|
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|

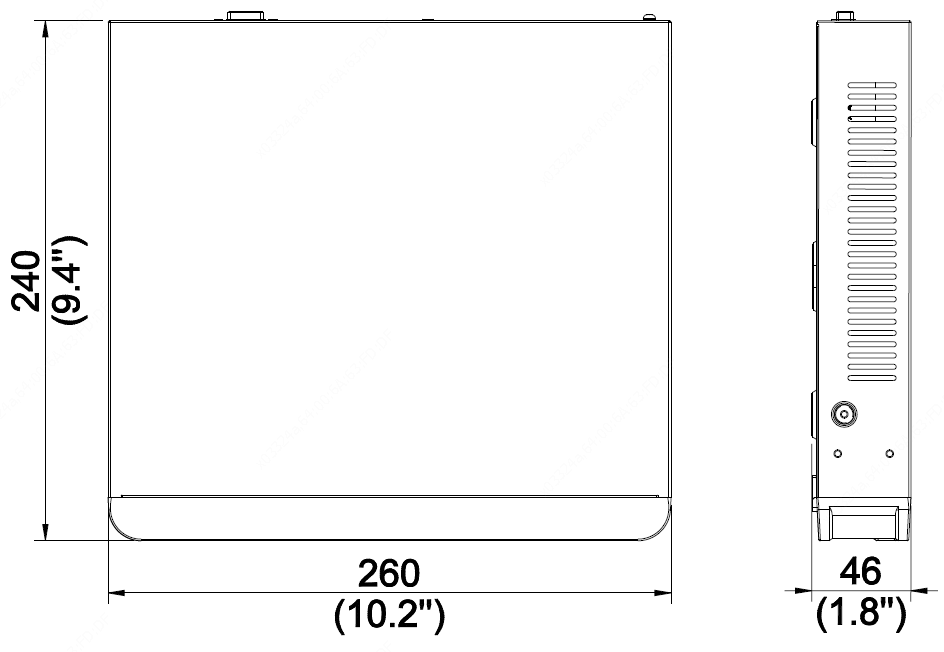

Dimensions (W×D×H) |
260mm × 240mm × 46mm (10.2"×9.4"×1.8 ") |
|
Weight (without HDD) |
≤0.98kg (2.16 lb) |
