Features:

9-CH NVR

2 SATA interface

1U,  H.265&4K

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend


*Support Ultra265/H.265/H.264 video formats

*9-channel input

*Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

*HDMI and VGA simultaneous output

*Up to 8 Megapixels resolution recording

*Accurate retrieval, instant playback

*2 SATA HDDs, up to 6TB for each HDD

*ANR technology to enhance the storage reliability when the network is disconnected

*Support cloud upgrade


Model

VCNVR-809BA2S

Video/Audio Input

IP Video Input

9-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming bandwidth

160Mbps

Outgoing bandwidth

72Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA:

1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

9-ch

Corridor Mode Screen

3/4/5/7/9

Decoding

Decoding format

Ultra265/H.265/H.264

Live view/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 1 x 6MP@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1

Hard Disk

SATA

2 SATA interface

Capacity

up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

VCA Search

Face search, Behavior search

Statistical Analysis

People counting

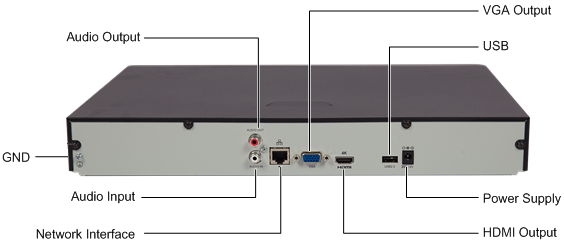

External Interface

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, Front panel: 1 x USB2.0

General

Power Supply

12V DC

Power Consumption: 7 W (without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

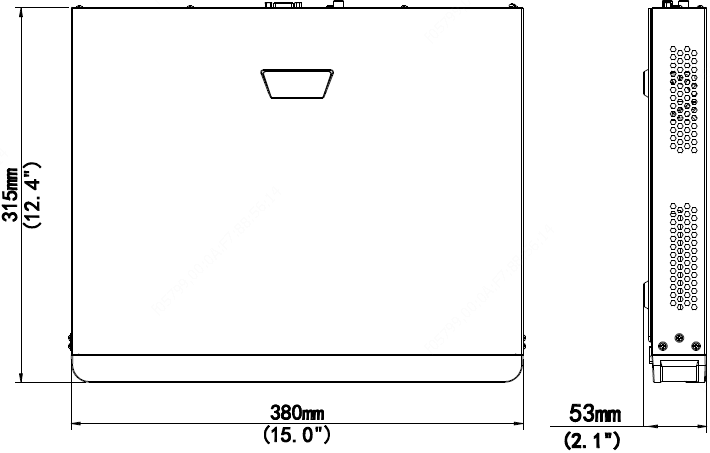

Dimensions (W×D×H)

380mm × 315mm ×53mm (15.0" × 12.4" ×2.1")

Weight (without HDD)

1.6Kg (3.53lb)
