Features:

16-CH NVR

1 SATA interface

Mini 1U, H.265&4K

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend


*Support Ultra 265/H.265/H.264 video formats

*16-channel input

*Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

*Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

*HDMI and VGA simultaneous output

*Up to 4K resolution recording

*1 SATA HDD up to 6TB

*Support cloud upgrade


Model

VCNVR-816BA1S

Video/Audio Input

IP Video Input

16-ch

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

48Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, 3.5mm

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection

VCA Search

Face search, Behavior search

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 2 x USB2.0

General

Power Supply

12V DC

Power Consumption: ≤5 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

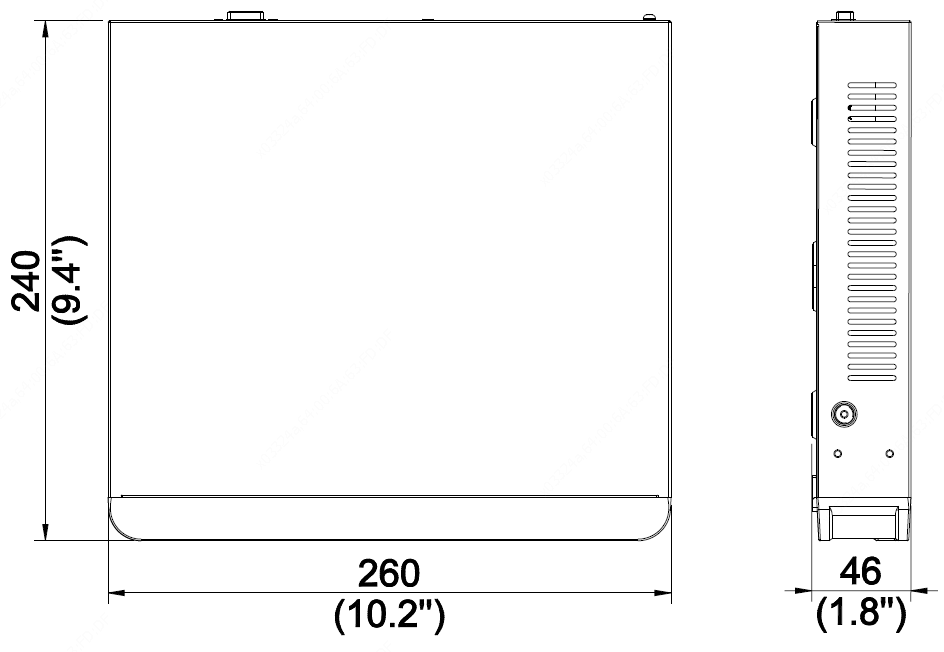

Dimensions (W×D×H)

260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")

Weight (without HDD)

≤0.98kg (2.16 lb)
