Features:
64-CH NVR
16 SATA interface, 3U, H.265&4K, 4 Network interface
2 SFP interface, RAID0/1/5/10/50/60, Hard disk hot swap on front panel
Redundant power supply(opitional), Up to 14 HDMI output(optional), 2 miniSAS ports
sales@veacam.com
*Support Ultra 265/H.265/H.264 video formats
*64-channel input
*Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
*Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
*HDMI1, HDMI2 and VGA independent outputs provided
*Up to 12 Megapixels resolution recording
*Redundant power supply optional
*2 decoding cards optional, up to 12-ch HDMI
*Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
*16 SATA HDDs, up to 10TB for each HDD
*Support 2 miniSAS Interfaces
*Support 12V power output
*ANR technology to enhance the storage reliability when the network is disconnected
*Support cloud upgrade
*Support N+1 Hot spare
|
Model |
VCNVR-1264BA16SD |
|
Video/Audio Input |
|
|
IP Video Input |
64-ch |
|
Two-way Audio Input |
1-ch, BNC |
|
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 |
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2 (HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, BNC |
|
Synchronous Playback |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
|
Hard Disk |
|
|
SATA |
16 SATA interfaces |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
miniSAS |
2 miniSAS ports |
|
Disk Array |
|
|
Array Type |
RAID 0/1/5/6/10/50/60 |
|

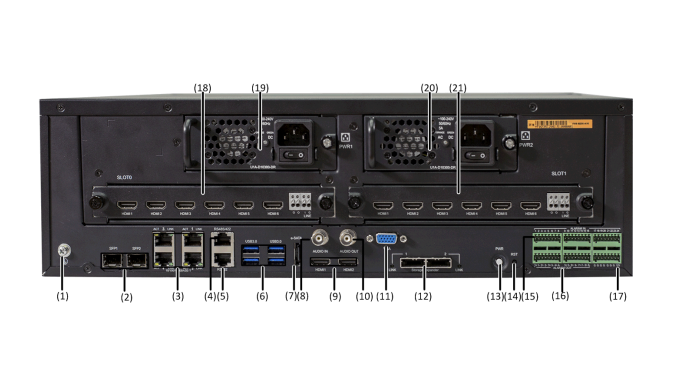

External Interface |
|
|
Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
USB Interface |
Rear panel: 4 x USB3.0 |
|
Alarm In |
24-ch |
|
Alarm Out |
8-ch |
|
Decoding Card (optional) |
2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
|
Power Output |
12V |
|
General |
|
|
Power Supply |
100 ~ 240V AC Power Consumption: ≤ 50 W (without HDD) |
|
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|
Chassis |
19-inch rack-mounted 3U chassis |
|

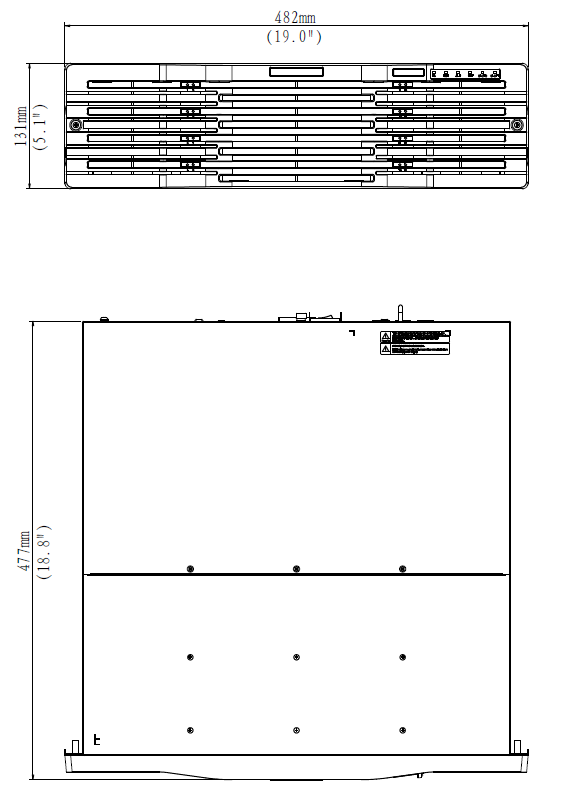

Dimensions |
482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
|
Weight (without HDD) |
≤ 10 Kg (22.05 lb) |
