Features:

32-CH NVR

4 SATA interface, 1U

H.265&4K, Dual Network interface

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend


*Support Ultra265/H.265/H.264 video formats

*32-channel input

*Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

*HDMI and VGA simultaneous output

*Up to 8 Megapixels resolution recording

*Accurate retrieval, instant playback

*4 SATA HDDs, up to 8TB for each HDD

*ANR technology to enhance the storage reliability when the network is disconnected

*Support cloud upgrade


Model

VCNVR-832BA4S

Video/Audio Input

IP Video Input

32-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming bandwidth

160Mbps

Outgoing bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

Browser

IE(IE10/11) for Windows

Firefox (version 52.0 and above) for Windows

Chrome(version 45 and above) for Windows

Edge(version 79 and above) for Windows

Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA:

1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60

Audio Output

1-ch, RCA

Audio Compression

G.711A, G.711U

Recording Resolution

8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF

Synchronous Playback

32-ch

Liveview display

1/4/6/8/9/16/25/36

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot, up to D1 resolution

Decoding

Decoding format

Ultra 265/H.265/H.264

Live view/ Playback

8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF

Capability

2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1

Hard Disk

SATA

4 SATA interfaces

Capacity

Up to 8TB for each disk

(The maximum HDD capacity varies with environment temperature)

Smart

VCA Detection by Camera

Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking

VCA Search

Face Search, Behavior Search

People counting

People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention (SIP), Face Detection by Camera

Total 8-ch

General Alarm

General Alarm

Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

Network Interface

2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces

USB Interface

Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0

RS232

NA

RS485

NA

Alarm In

NA

Alarm Out

NA

General

Power Supply

12V DC

Power Consumption: 15W( without HDD )

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)

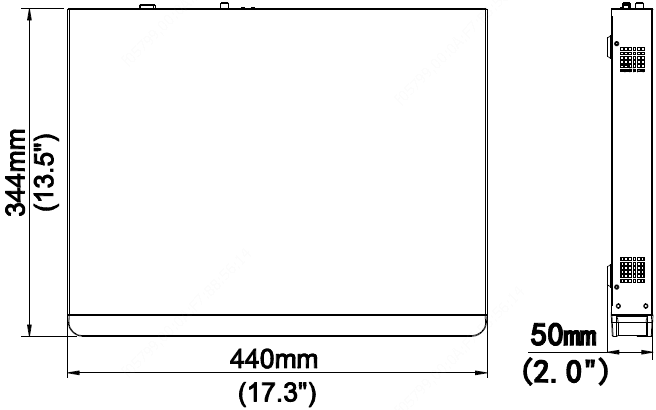

Dimensions (W×D×H)

440mm × 344mm ×50mm (17.3" × 13.5" ×2.0")

Weight (without HDD)

3.15 Kg (6.94 lb)
