Features:

*4.5"Total Metal body construction,IP66 rate protection

* 6 pcs LED,IR distance up to 60~80M;

* High definition 2MP,  22X Zoom

* ONVIF2.4
* Support P2P function* With Two way Audio* With 128G TF card slot

* Intelligent IR illumination & power consumption is variable, dependant the zoom facto

*Seamless docking with Haikang, dahua, CMS(XM),UC2, metavision

AEVISION, Milestone and other platforms.

*Compatible with Milestone and AXXON platform


sales@veacam.com
  • Details
  • Specification

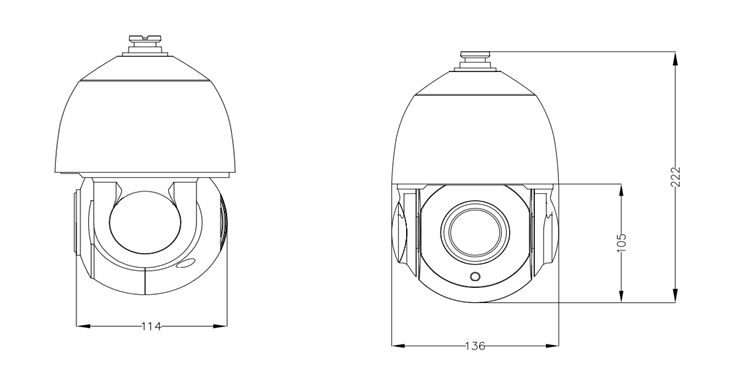

  • Drawing
  • Enquiry
  • Recommend



Camera
Solution 1/3"CMOS SC2232
Output pixel 1920x1080/30fps
1920x1080/25fps
Lens 22X  f=4.7mm~94mm
Dome
Software Control IE, CMS, Management Platform
Mobile View Android  iPhone
Rotation Range Pan:0º~355º ,Tilt:0º~95º
Rotation Speed Pan:0~80°/s , Tilt:0~40º/s
Preset Points 220pcs presets(dwell time 01-60s interval available)
Guard Tours 3 groups( Max.16 points, dwell time user selectable)
AB scan range Any point in range:0º~93º and 0º~360º(BT-54F)
AB scan speed 1-9 grades
Operating temperature Outdoor: -40°C~+60°C
Operation menu English
IR distance Up to 60~80 meters
Wifi
WIFI Protocol 802.11b/g/n
Wireless distance 60-80M
WiFi Safe mode WEPWPAWPA2

Please enter your inquiry details such as model no., lens, color,quantity,ect .
