Features:

√6IN1 High Efficient access control solution
√Ultra-high accuracy:  ± 0.3 ℃, 30-45°C
√Body Temperature&Mask Detection
√50K Faces Database, 100K records
√Abnormal Temperature alarm& realtime info print*
√SDK available& OEM service
√Languages vioce broadcast OEM

√Applicable to company employee time and attendance

√Applicable to places with more staff such as stations, schools and hospitals

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend







Technical Specification

Model VCTFDT3
Hardware
Chipset Hi3516DV300
System Linux operation system
RAM 8G EMMC
Image sensor 1/2.7" Sony CMOS
Lens 4.5mm
Camera Parameters
Camera Binocular camera supports live detection
Effective pixel 2Mega pixel,1920*1080
Min. lux Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR ≥50db(AGC OFF)
WDR ≥80db
Face Recognition
Height 1.2-2.2 M, angle adjustable
Distance 0.5-2 Meters
View angle Vertical ±40 degree
Reco. Time <300ms
Temperature
Range 30-45(℃)
Accuracy ±0.3(℃)
Distance 0.3-0.8
Response time <300ms
Interface
Internet interface RJ45 10M/100M Ethernet
Weigand port Support input/output 26 and 34
Alarm output 1channel relay output
USB port 1USB port (Can be connected to IC card reader/printer)
General
Power input DC 12V/2A
Power consumption 20W(MAX)
Working temperature 0℃ ~ +50℃
Humidity 5~90%, no condense

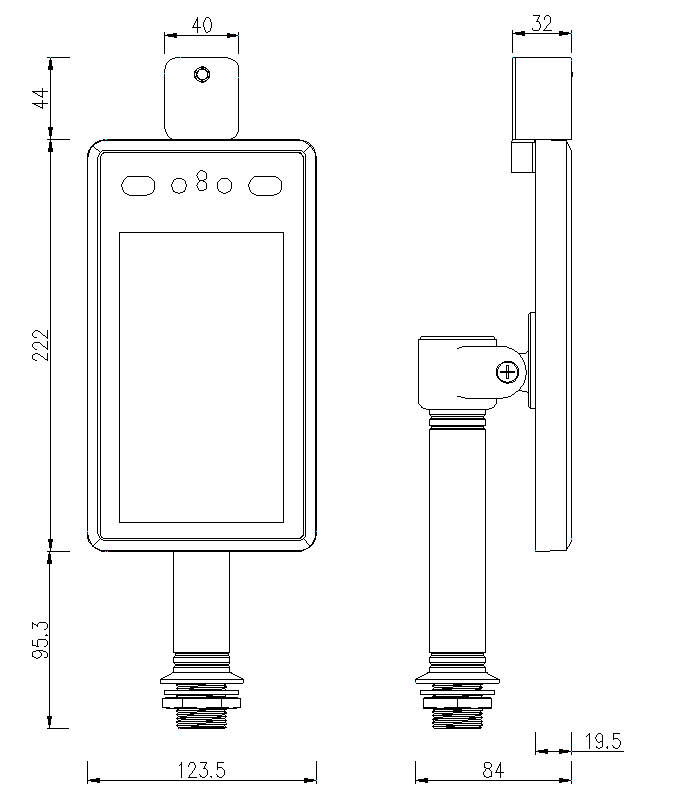

Dimension 123.5(W) * 84(H) *361.3(L)mm
Weight 2.3 kg
Column aperture 27mm
