Features:

Optical Camera

4.0MP 2688*1520@30fps,

Ultra 265/H.265/ H.264/MJPEG,
Triple streams
POE, IP67
50M IR Range

Thermal camera:

256*192@30fps,3,2mm@F1.1,

NETD≤55mk,12μm pixel size

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend

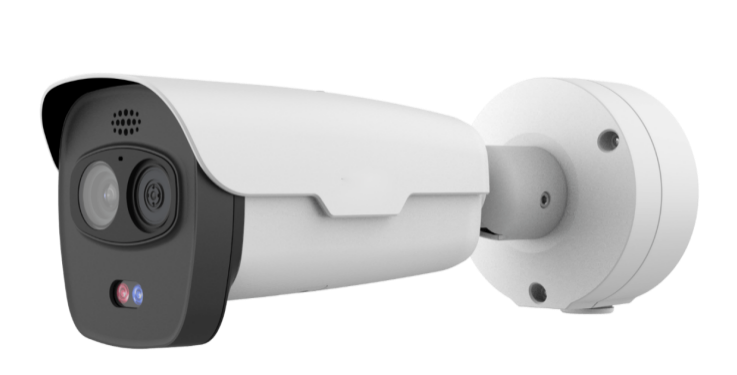

Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes

1/1.8“ target surface, high sensitivity sensor, satisfy the need of starlight monitoring

Support reliable fire detection, smoking detection and fire shield area

Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm

Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion

Support picture-in-picture mode, real-time contrast live, more convenient and clear

Support audio and light alarm, with red and blue warning lights built in

Ultra 265, H.265, H.264, MJPEG


Triple streams

Max 2688*1520@30fps in the optical module and Max 720P@30fps in the thermal module

DC12V±25% or PoE power supply

Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 256 GB




WVCB50DT428

Thermal Module

Sensor type

Vanadium Oxide Uncoiled Focal Plane Arrays

Original Resolution

256*192

Angle of View(H*V)

57.0°~42.0°

Video Resolution

720P(1280*720), Max 30fps

Response waveband

8~14μm

Pixel size

12μm

IFOV

3.75mrad

NETD

≤55mk @f/1.0 @25°C

Lens(focal length)

3.2mm@F1.1

Palette

Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce

Optical Module

Sensor

1/1.8", 4.0 megapixel, progressive scan, CMOS

Lens

4mm@F1.6

Iris

Fixed aperture

Angle of View(H*V)

89.9°~49.1°

Video Resolution

4MP(2688*1520), Max 30fps

Shutter

Auto/Manual, 1 ~ 1/100000s

Min. Illumination

Colour:0.001lux (F1.6, AGC ON)

B/W: 0.0005lux(F1.6,AGC ON)

0 lux with IR

WDR

120dB

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

Up to 50m (164 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

BLC

Supported

Smart (thermal module )

Fire Detection

Support the detection of fire point in the environment and up to 10 fire points can be detected

Smoking Detection

Support the detection of smoking in the environment and link to alarm

Temperature detection

Support area detection, and link to alarm, the temperature value can be added to the alarm picture

Support cold&hot point tracking, timely and clearly shows the abnormal point

Up to 12 rules can be set

Temperature range:  -20°C ~+150°C

Temperature accuracy:  Max (±8°C/±8%)

Smart intrusion prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area

Support motor vehicle and pedestrian detection capture and plan arming

Smart (optical module )

Exception Detection

Object left behind detection, Object removed detection, Scene Change Detection

Smart intrusion prevention

Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area

Support motor vehicle, non-motor vehicle and pedestrian detection capture and plan arming

Event

Audio and light alarm

Support audio and light warning function, with red and blue warning lights built in

Basic Detection

optical module :Motion detection, Audio detection, Tampering alarm

thermal module : Audio detection

General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Video

Compression

Ultra265, H.265, H.264, MJPEG

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas per scene

Audio

Audio Compression

G.711U,G.711A

Two-way audio

Supported, Built in mic and speaker

Sampling Rate

8kHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,

Compatible Integration

ONVIF (Profile S, Profile G, Profile T)

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Interface

Audio I/O

1/1

Alarm I/O

2/2

Serial Port

1 RS485

Network

1 x RJ45 10M/100M Base-TX Ethernet

General

Power

DC12V(±25%), PoE(IEEE802.3af)

Power consumption: Max 12W

Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection

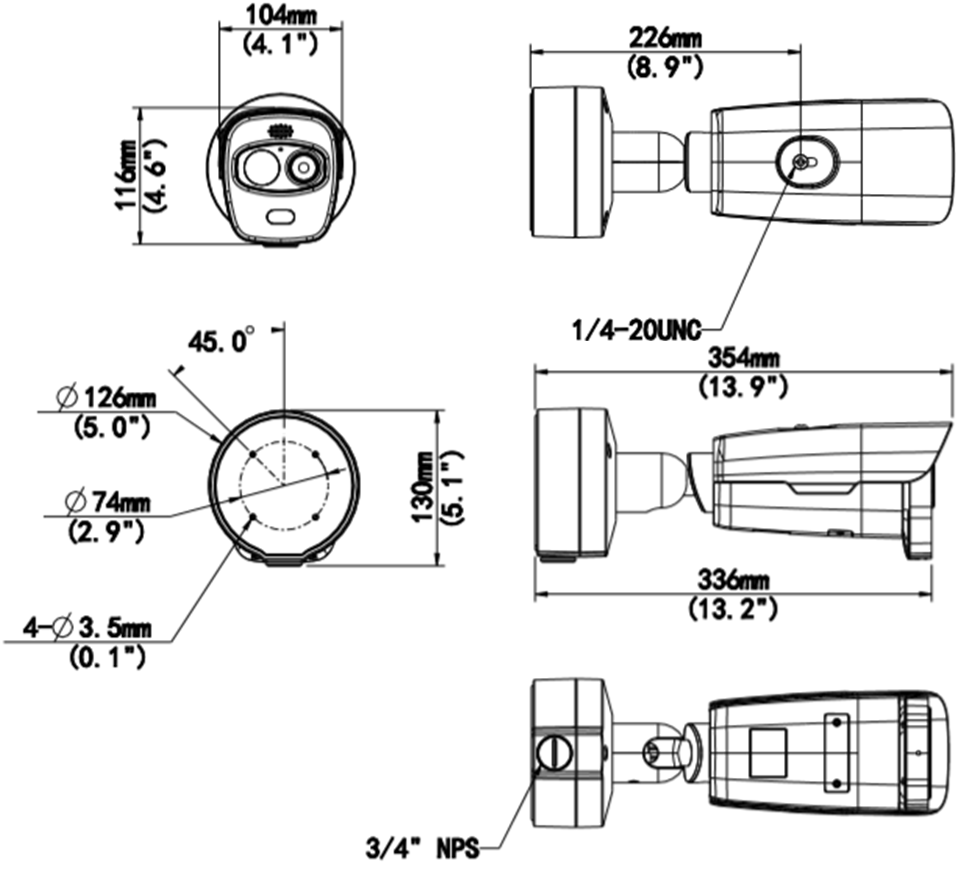

Dimensions (Ø x H)

Φ354mm x 104mm x 116mm(Φ13.9” x 4.1” x 4.6”)

Weight

1.85kg(4.08lb)

Temperature detection working environment

-10°C ~+50°C(-14°F ~ 122°F) , Humidity: ≤95% RH (non-condensing)

Working Environment

-40~70(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection

IP67

Vandal Resistant

N/A
