Features:

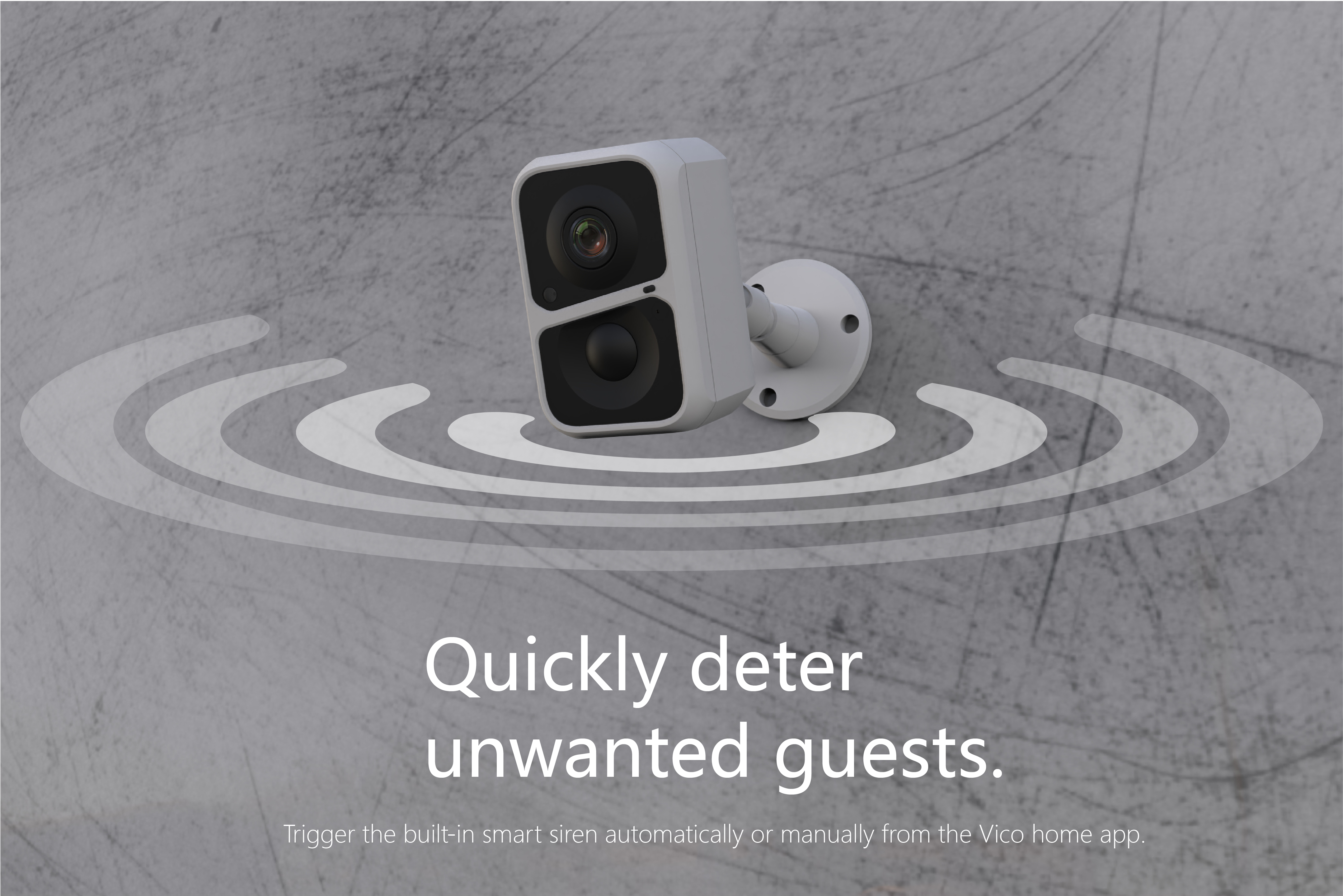

Smart AI Wifi Camera

2.0 Megapixel, 1080P CMOS,

IR Light & White Light source

Two way Audio,

Smart AI Features

Built-in5200mAh Li-Battery




sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend



CG6 Items

Specifications

Master Processor

SOC

T31ZL

Image Sensor

Sensor

1/2.9" color CMOS Sensor

Lens

M12, f: 3.3mm, F2.0, 2-megapixel

Visual angle

H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees

Minimum Illumination

0.01 Lux

Audio

Input/Output

Two-way voice intercom available (built-in Microphone and speaker)

Audio Compressing Method

AAC

Video

Video Compressing Method

H.264/H.265

Lighting Frequency

50Hz, 60Hz

Image Frame Rate

15 fps

Maximum Image Resolution

1920*1080P

Light Source for Night Vision

IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 7M

Network

Wireless Network

2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna

Protocols Supported

TCP/IP, UDP/IP, DHCP, RTMP, MUTP

IP Address Supported

Dynamic IP address supported

AI

Intelligent Features

Human contour detection, activity zone,intelligent push,  pet snapshot,Package inspection

Alarm Notification

Alarm Methods

Alarm push by mobile APP and alarm sound

Wake-up

Wake-up Method

PIR body induction wake-up, and remote positive wake-up

Video Recording

Recording Method

Alarm triggered recording, and manual recording

Video Storage

Cloud storage, local Micro SD card, and mobile phone memory

Indicator Lamps

LED Indicator

RGB tri-color lamp indicating the status of power/network signal/functionality

Battery

Capacity

5200mAh/6700mAhOptional

Removability

Unremovable

Battery Life

6 months (provided that 20 10s videos are recorded per day)

Standby Time

1 year

Charging Voltage

DV 5V+-5%/1.5A

Charge Time

Within 10 hours

Protection Method

IP65 is dustproof and waterproof; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures

Power Consumption

Standby Power Consumption

1.68mW4V 0.42mA

Power Consumption of Daytime Operation

0.88W4V 220mA

Power Consumption of Operation at Night

2.20W4V 550mA

Interfaces

Power Supply

1 Micro USB interface

SD Card

1 Micro SD card (up to 128GB supported)

Keys

1 reboot key and 1 on/off key

Installation Method

Installation Method

Bottom 1/4 universal screw hole

Environment

Dustproof and waterproof

IP65

Operating Environment

-10° ~ 45°C  /10% ~ 80%  (no condensation)

Storage Environment

-20°C ~ 60°  /0% ~ 90% (no condensation)

Specifications

Size (LxWxH)

89mm*58mm*59mm(without bracket)

Material + Process

ABS+PC

Color

White

Certifications

Certificate

CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368, BattG
