Features:

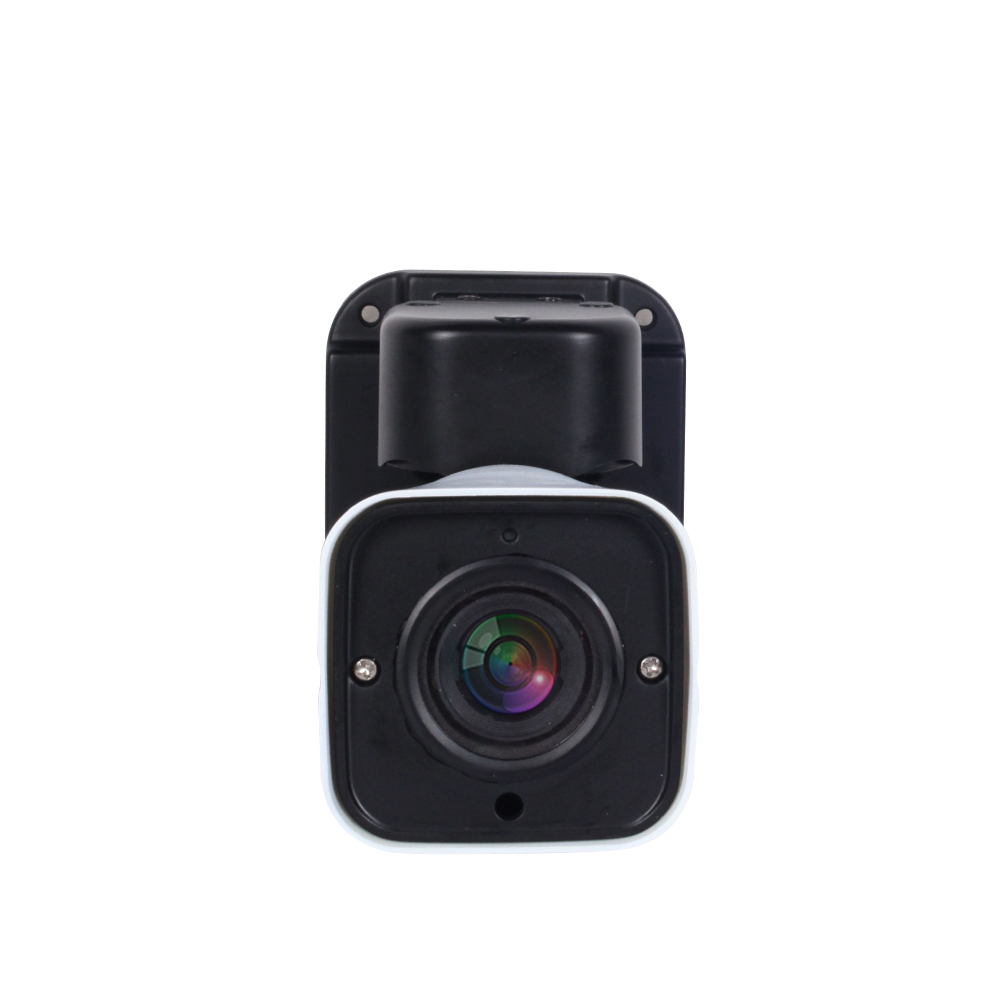

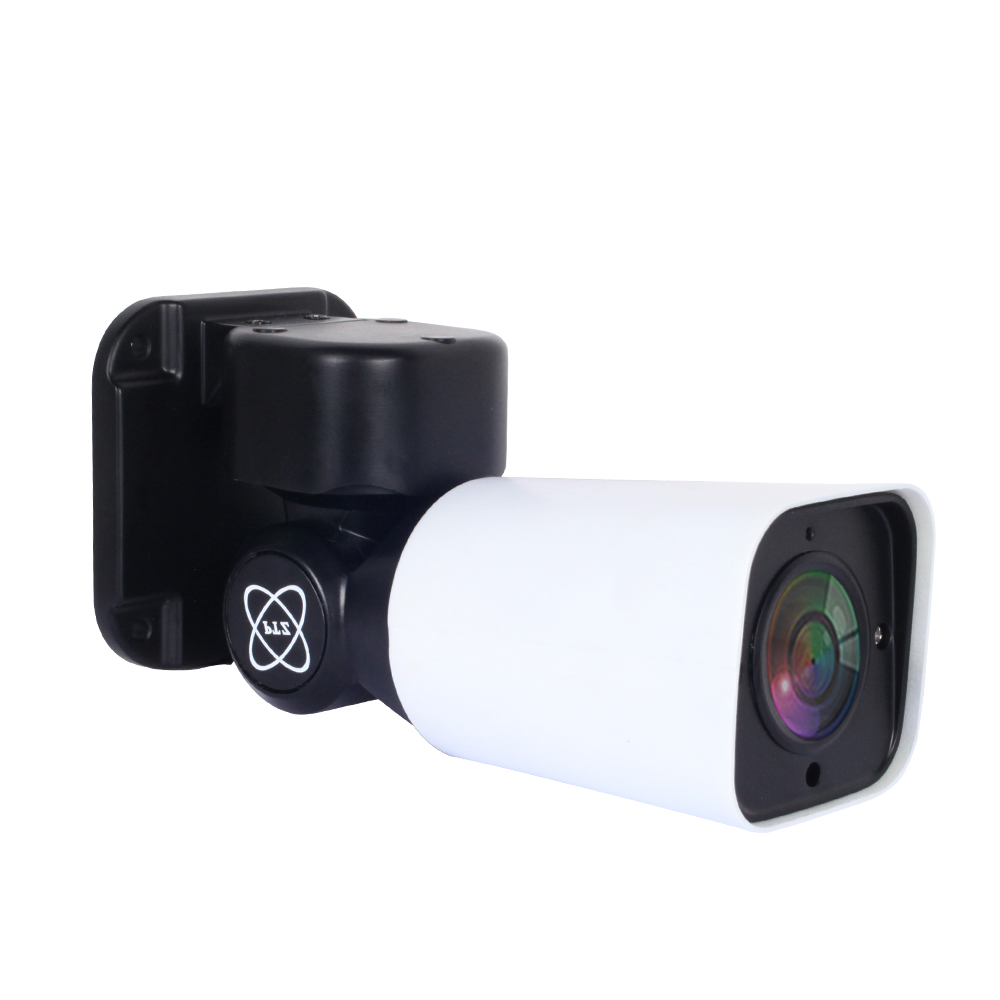

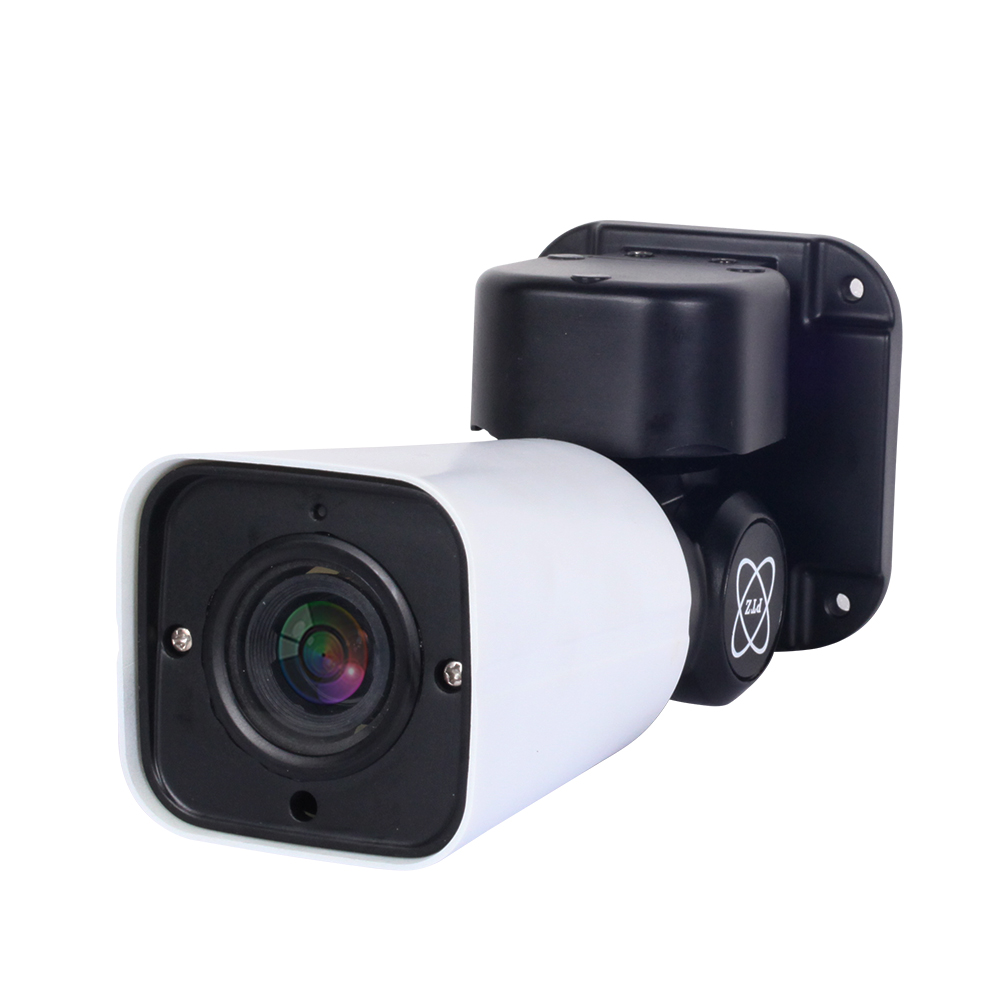

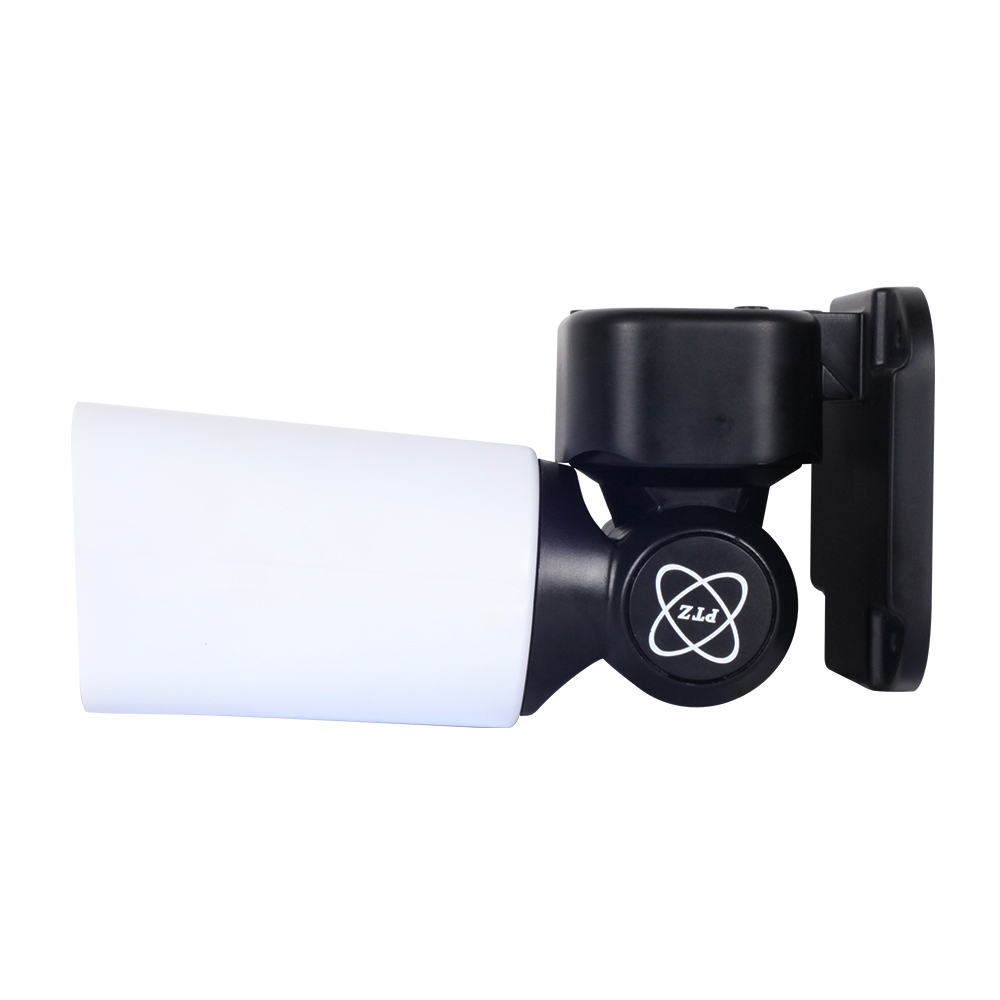

*PTZ camera, the most competitive product
*ONVIF2.4;Support P2P function
*Support H.265/H.264 compression
*Pan/Tilt/Zoom, A-B scan, tour available
* Compatible with HIKVISION ,DAHUA, XM NVR
*Support audio、POE、WIFI、Starlight
| Camera | ||
| Module NO | WVCVPM10X20 | WVCVPM10X50 |
| Sensor | 3516E+Sony307 | 3516D+AR0521 |
| Pixel | 2MP | 5MP |
| Lens | 10X f=5.0~50MM | 10X f=5.0~50MM |
| BLC | Support | |
| AGC | Auto/manual | |
| WB | Auto/manual/indoor/outdoor | |
| S/N Ratio | >50dB | |
| Dome | ||
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |
| Software Control | IE, CMS, Management Platform | |
| Video compression | H.264/H.265/M-JPEG | |
| Audio compression | G711, PCM | |
| Mobile View(optional) | Android iPhone | |
| Rotation Range | Pan: 0°~160º , Tilt: 0°~55º | |
| Rotation Speed | Pan: 0~25°/s , Tilt: 0~20°/s | |
| Auto Flip | Support | |
| Preset Points | 220pcs presets（dwell time 01-60s interval available） | |
| Guard Tours | 3 groups ( each group 16 preset、dwell time and speed selectable) | |
| AB scan range | Support, 0-160º | |
| AB scan speed | 1-9 grades | |
| Operating temperature | -30℃~+60℃ | |
| Operation menu | English | |
| Auto Control IR LED | PWM | |
| Consumption | ≤10W | |
| Lightning Protection | Transient voltage 6000V | |
| Related validation | IP66,CE,FCC,RoHs | |
| IR parameters | ||
| Auto Control IR LED | PWM | |
| IR distance | up to 50 meters | |
| LEDs | 5PCS Array 30Mil LED | |
| 36Pcs 1Box，Box size | 65*34*47 | |
| 36Pcs 1Box，Box Weight | 26KG | |
Please enter your inquiry details such as model no., lens, color,quantity,ect .
