Features:

2.0MP1080P IP/ Network Camera

H.265 ,Mstar313E+IMX307 Resolution

4Pcs Warm IR Led,Night Vision Can Full Color

F1.2 3.6MM Starvis Lens
IR Distance Max 45M

Water resistance: IP66



sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend

1.SMD Led

Latest Technical to Improve the Image Clarity from 88% ~ 95%




2.WHat’ s TRUE WDR (SENSOR WDR)?

True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best result –setting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.

3.COMPARISON BETWEEN D-WDR, WDR, BLC


Difference

Digital WDR

True WDR

BLC (Backlight compensation)

Technology

Adjusts the gamma (Y) value to enhance dark areas

Combines long and short exposures into one frame

Increase the level of exposure for the entire image

Pros

Good quality image

Best quality image

Object of interest is clear

Cons

Image may be slightly washed out

May have minor color restoration problem or color dispersion

Overexposure in brightly lighted areas








4.StarLight solution makes darkness totally visible !

Sony newest Starvis CMOS image sensor (IMX290/291)hat widely used in starlight HD analog /network cameras, it can capture Full HD 1080p resolution video with vivid color and high quality at 60 frames per second, ideally suitable for the high-speed motion scenes.

In complete darkness condition (<= 0.001 Lux), using the Infrared lighting to capture video is the common solution to meet the night video surveillance needs, however, the surveillance camera only can capture B/W image; some cameras may use the white lighting to achieve color video surveillance at night, but the result is not satisfied because of the limitation on illumination distance and angle. Using and deploying the Star-light surveillance cameras can effectively solve the above deficiencies of night video surveillance applications, can fully meet the requirement of night surveillance applications.








Model No.

WVC45RQ2LN

Camera Type

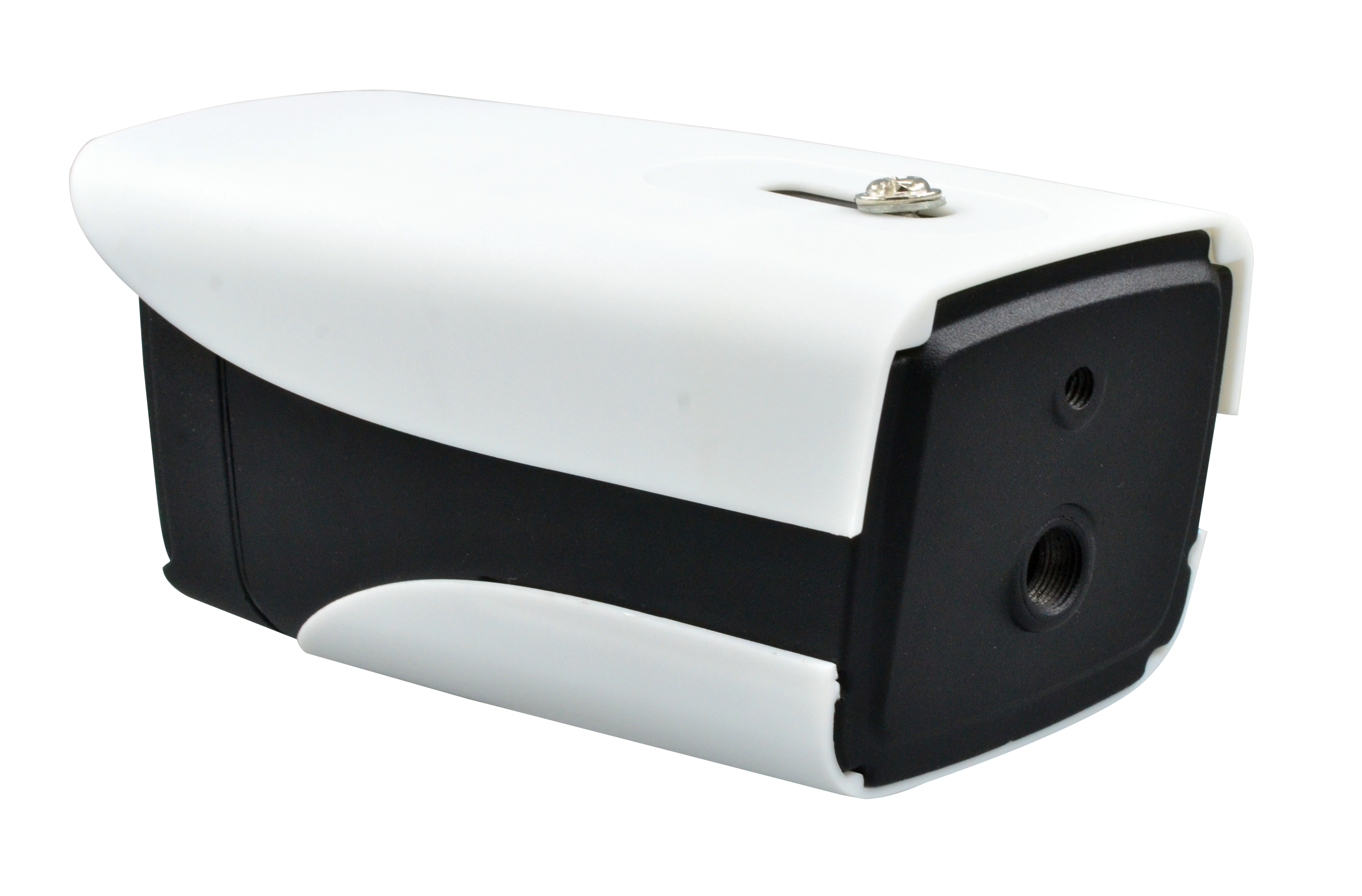

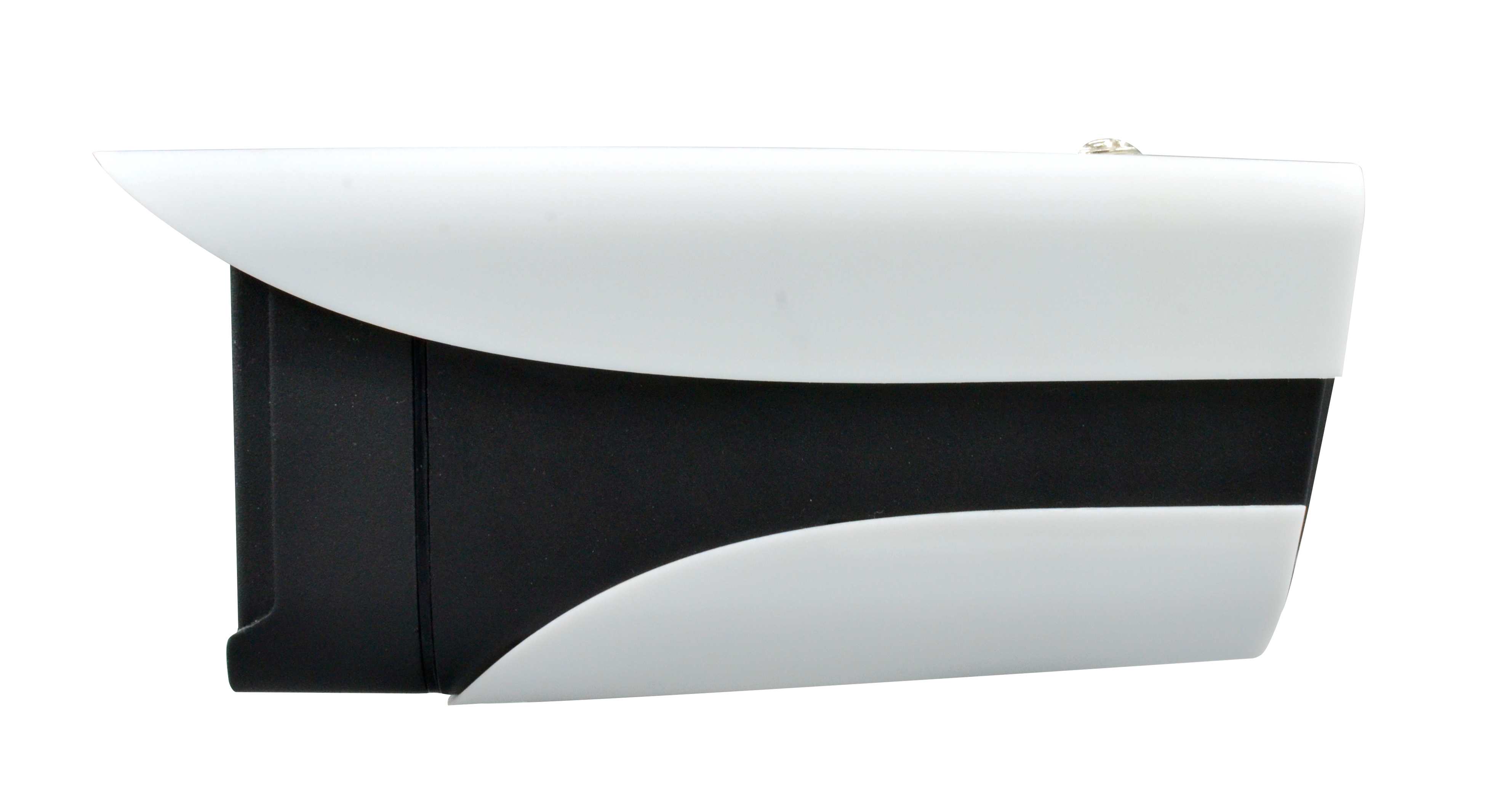

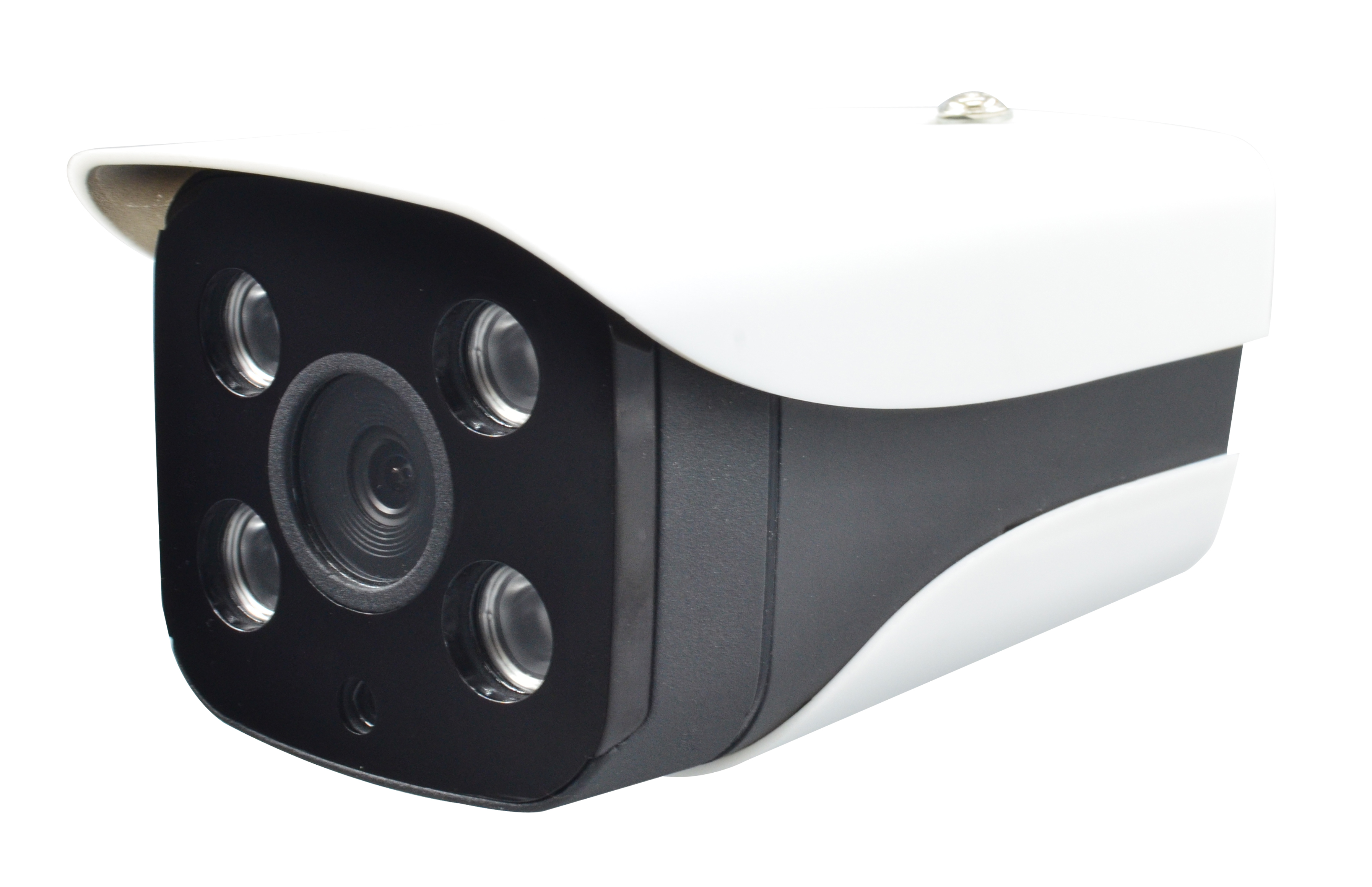

Bullet  IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

2.0 Megapixels

Main stream:1920*1080;1280*720

Sub stream:704*576

Frames Rates

PAL:25fps(1920*1080)/(1280*720)

NTSC:30fps(1920*1080)/(1280*720)

Image Sensor

1/2.9" SONY 307 CMOS Sensor

2.13 megapixel resolution (1945H*1097V)

DSP

Dual core 32-bit DSP

Mstar313E

Min. Illumination

Color   0.01Lux@F1.2

B/W   0.001 Lux@F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.265 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,....)

CMS Software

Uniform CMS Software(multiple   devices   management   system)

Cloud P2P

Platform and other program,Offer SDK

Network

1   *   RJ45,10/100M,Support

RTMP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.4)

POE

Support(optional)

WIFI

N/A

General

Language

English , S-Chinese

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

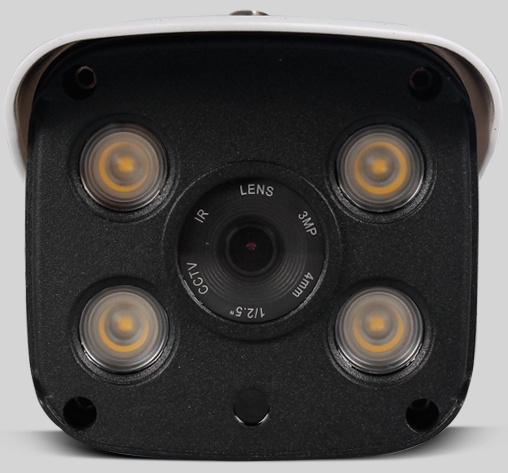

3.6mm Starvis Lens , F1.2

Infrared Luminary

4pieces Array IR LED( Warm Light)

Illuminate Distance

45M

Waterproof Criterion

IP 66

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage

DC12V

Power Consumption

IR On: 700mA max., IR Off: Less than 250mA

Working Environment

-10°C~+60°C,

Weight

1.5kg with Package
