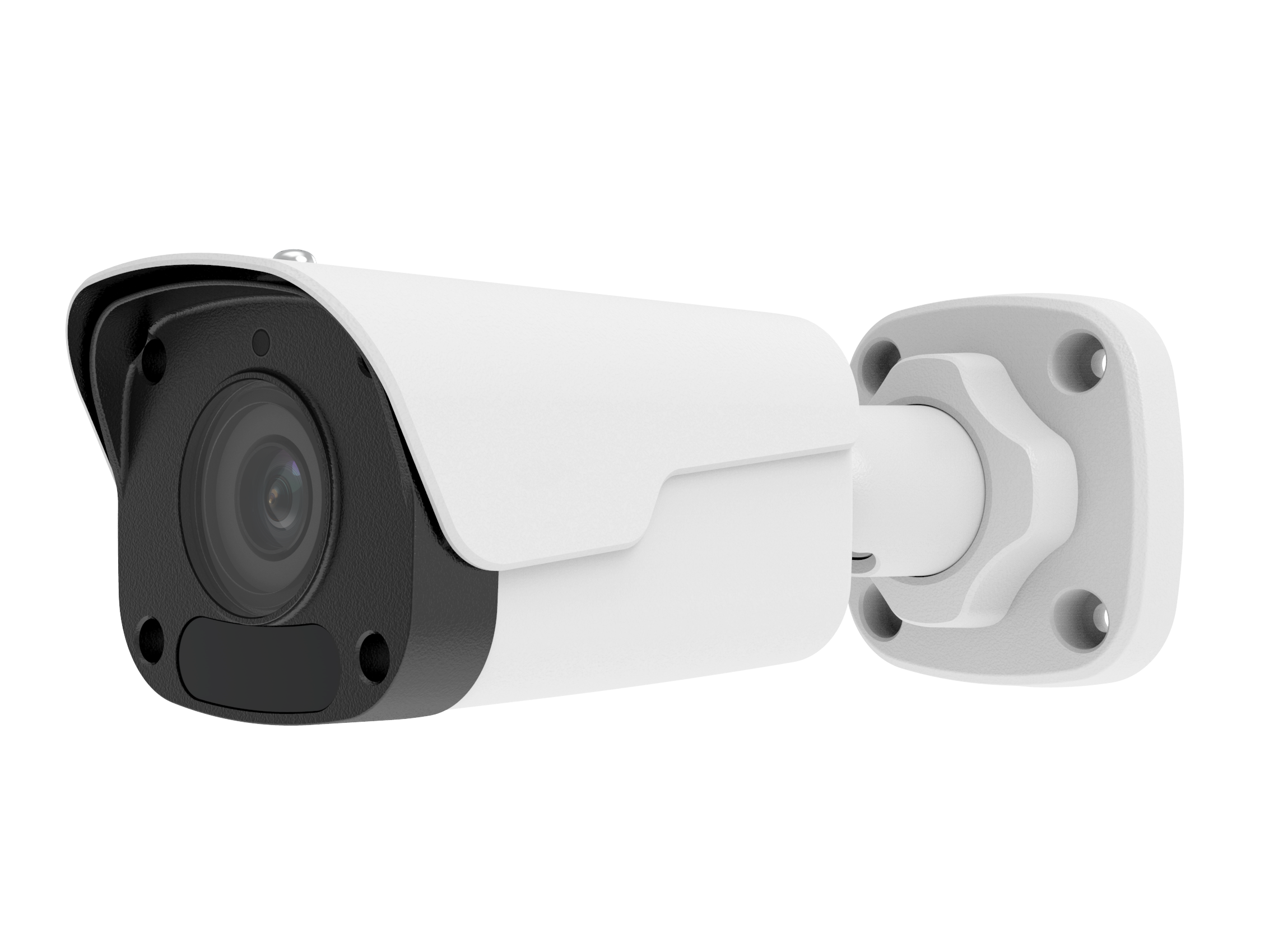

Features:

1/2.7" CMOS, ICR,

3840*2160 15fps,

Ultra 265/H.265/H.264/MJPEG,

Dual stream, DC12V & PoE,

Fixed lens (2.8mm,4mm), IP67,

IR range: up to 30m

sales@veacam.com
  • Details
  • Specification

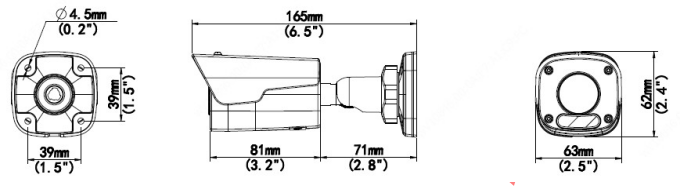

  • Drawing
  • Enquiry
  • Recommend

*High quality image with 8MP, 1/2.7"CMOS sensor

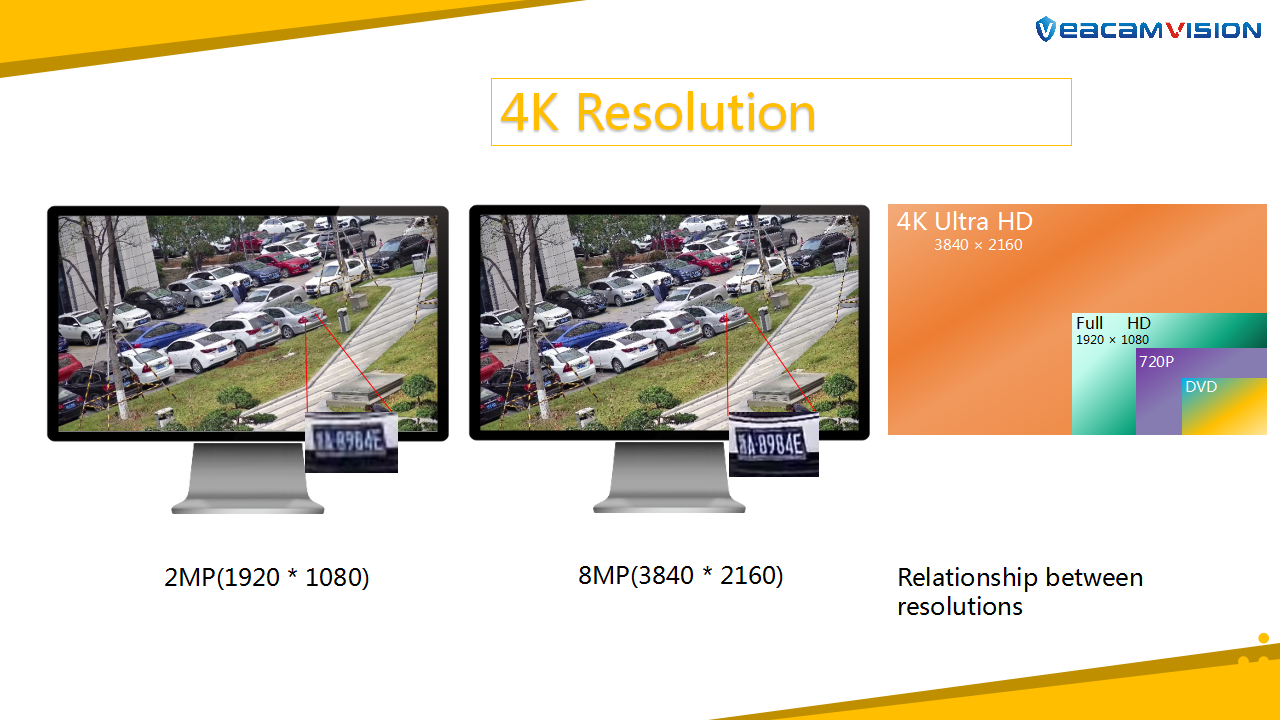

*8MP(3840*2160)@15fps;5MP(2880*1620)@25/20fps;4MP(2560*1440)@25/20fps;3MP(2304*1296)@30/25fps;2MP(1920*1080)@30/25fps; 720P (1280*720)@30/25fps

*H.265, H.264, MJPEG

*Built-in Mic

*Smart IR, up to 30m (98ft) IR distance

*Supports 256 G Micro SD card

*IP67 protection

*Support PoE power supply

*3-Axis



WVCB30BP828

WVCB30BP840

Camera

Sensor

1/2.7", 8.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.003Lux (F1.6, AGC ON)

0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N

>56dB

WDR

120dB

Lens

Lens Type

2.8mm@F1.6

4.0mm@F1.6

Field of View (H)

TBD

TBD

Field of View (V)

TBD

TBD

Field of View (D)

TBD

TBD

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3

4.0

90.0

36.0

18.0

9.0

Illuminator

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 8MP (3840*2160) , Max 15fps; 5MP (2880*1620) , Max 25fps ;4MP (2560*1440) , Max 25fps; 3MP (2304*1296) , Max 30fps; 2MP (1920*1080) , Max 30fps 720P (1280*720) , Max 30fps

Sub Stream: 720P (1280*720) , Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Video Bit Rate

128 Kbps~16384 kbps

U-code

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°

Dewarping

NA
