Features:

Wifi LCD NVR all in one Camera kits

Camera:
*3MP, HD lens 3.6MM IR cut filter with auto day/night switch
*4pcs Array IR LED IR range: 20 m, IP66 rating
*H.265+
NVR:
*10.1" LCD monitor NVR all-in-one
*TUYA APP P2P remote viewing
*Support max 4CH Simultaneous playback
*1xUSB interface,1xSATA(Max 6TB), 1xRJ45
*Wi-Fi, 802.11b/g/n, wifi transmission distance 600M (open area)
automatic cascade
Accessories:
*Adapter, Mouse, RJ45, User manual, Scew bag


sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend



cctv Video Kit 5MP 8CH NVR Wireless Security Camera Kit System 5MP Night Vision Outdoor Wifi Surveillance Camera System

Real time  Audio Record

Built-in a waterproof microphone let you hear the sound around the camera, Records what people say, make it authentic with sound video recording.


True Plug and Play,Easy InstallationSuper easy installation and configurations. Real plug and play, no need of any professional skills,you can totally do it yourself effortlessly and build your own surveillance system.



Motion DetectionThis system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.

Instant Email Alert Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .
HD 5.0MP High Definition Display High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

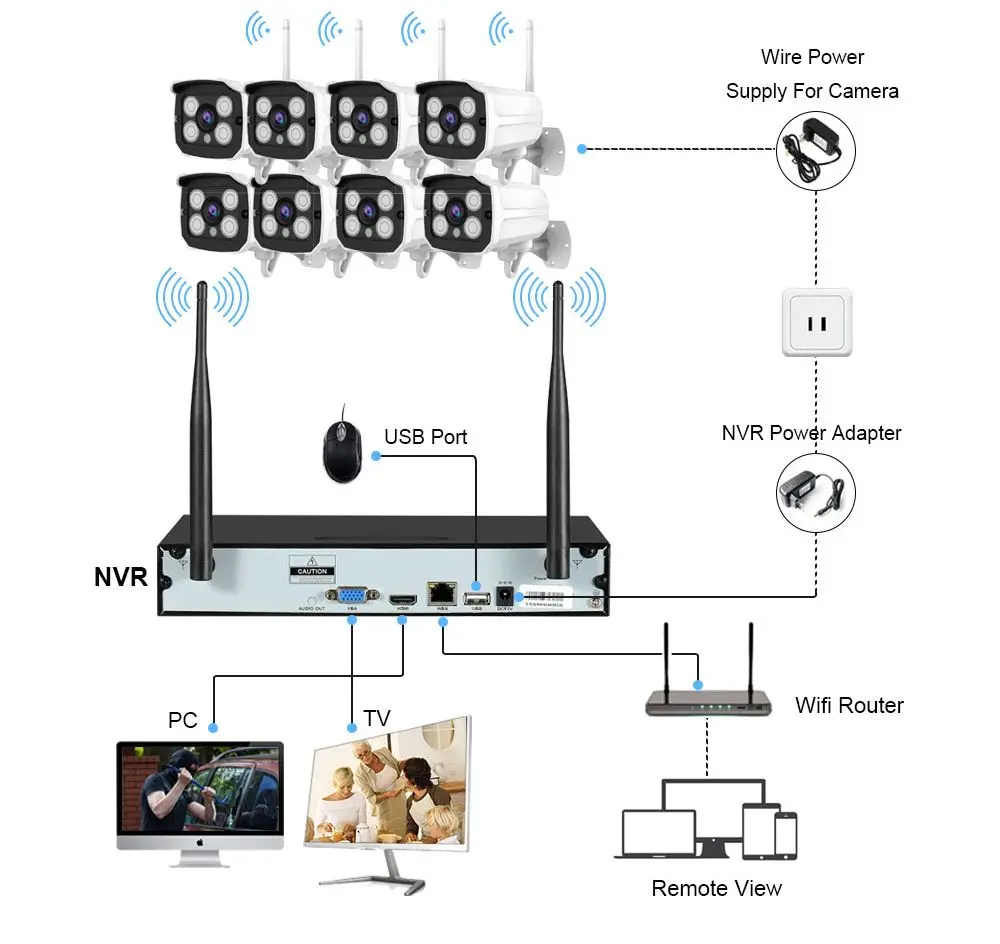

wifi transmission distanceWireless connections between cameras and NVR,Up to 50 Meters Wireless Transmission(no obstacle)


Product Specification

System

Video compression:H.265(High profile)

Operating system:Embedded LINUX

Video & Record

Preview screen:1/4/8/9

Video input:8CH 720P/960P/1080P/5MP

Video Mode: Manual, Time, Motion, Alarm

Playback Mode: Real time, Routine, Event

Playback:4CH

Interface

Network Protocol: UPnP/ SMTP/ PPPoE/ DHCP, FTP etc

Net Interface: 1 * RJ-45

USB Interface: 1 * USB2.0 Port

HDD :1*SATA port (Max 6TB/per)

Other

Operating Conditions: -10 C ~ 55 C Humidity 95% or less (non-condensing)

Power Supply:DC 12V

Power Consumption:<5W

Size: 260mm*210mm*45mm

Back up method : External storage via USB

USB Mouse:included

Weight:1.5KG


NVR Support Multi-Language

Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

Camera Specification:
Video

Image sensor:1/3"inch CMOS

Video quality:3MP

Lens:3.6mm lens

Dual Stream:YES

Port:WIFI 802.11b/g/n

Day/Night Mode:Color During day/switches to B&W at night

General

Indoor / Outdoor:Suitable for Indoor or Outdoor use

Operating Temperature:-25°F~122°F / -32°C ~50°C

Operating Power:DC 12V

Power consumption:<6W

Weatherproof:IP66

Minimum Illumination: 0.0 Lux

Body Construction:Bullet with Built-in Wall Mount

Night Vision

Distance:Up to 20m

IR Cut Filter:yes

Number of IR Lens: 4 pcs  Array IR LEDs

Items included

· 1x 8CH 5MP Wireless NVR
· 4/8x Wifi Cameras
· 4/8x Power Supply for Camera
· 1x Power Supply for NVR
· 1x USB Mouse(gift)
· 1x 3ft 1M Ethernet Cable(gift)
· 1x Quick Guide

Hard Disk Optional
