Features:
8-ch*BNC, 8-ch*IP, support
AHD/TVI/CVI/CVBS/IP, 5MP input, 5MP lite
encoding capability
sales@veacam.com
*Support H.265/H.264 video formats
*Support audio over coaxial cable
*Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
*8-channel BNC input
*Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
*Long transmission distance over coax cable
|
Model |
VCXVR-508UA1S |
|
|
Video/Audio Input |
||
|
Analog Video Input |
8-ch, BNC |
|
|
IP Video Input |
4-ch(only IP up to 8ch), each channel up to 4MP |
|
|
Supported Analog Camera Types |
Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input |
|
|
Audio Input |
1-ch, RCA |
|
|
Two-way Audio |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
40Mbps (Up to 48Mbps after all analog channel conversion) |
|
|
Outgoing Bandwidth |
60Mbps |
|
|
128 |
||
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP |
|
|
Video/Audio Output |
||
|
VGA Output |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
|
HDMI Output |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
8-ch |
|
|
Encoding |
||
|
Recording Resolution |
5MP Lite/4MP Lite /1080P/720P/CIF |
|
|
Recording Frame Rate |
Main stream: |
Sub stream: |
|
5MP Lite@6fps |
D1@6fps |
|
|
4MP Lite@8fps |
D1@8fps |
|
|
2MP Lite@15fps |
D1@15fps |
|
|
2MP@8fps |
D1@8fps |
|
|
Hard Disk |
||
|
SATA |
1 SATA interface |
|
|
Capacity |
Up to 6TB for each HDD |
|
|

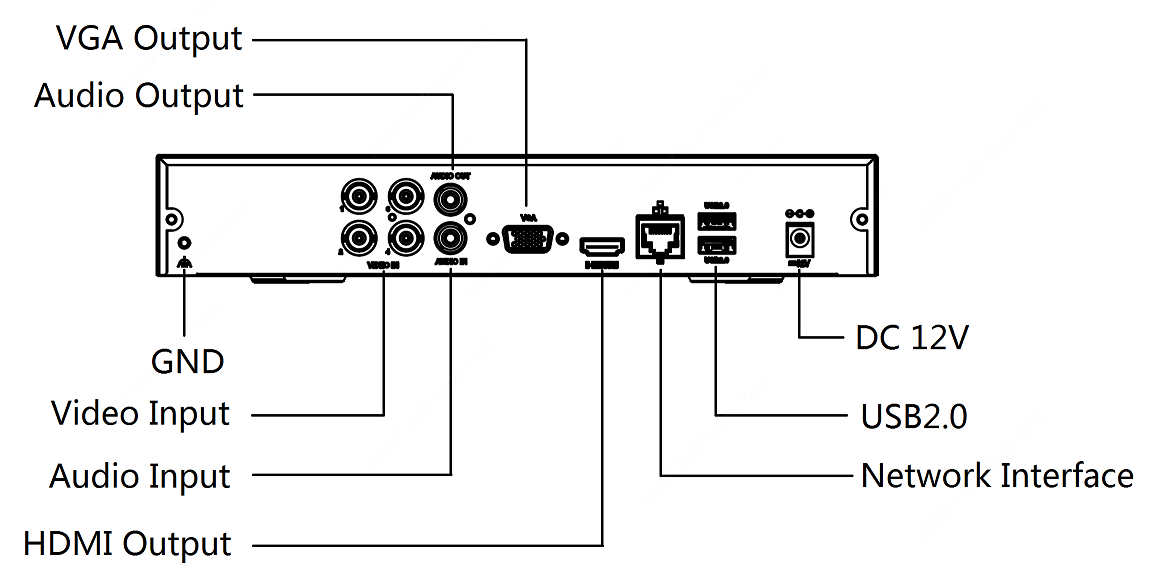

External Interface |
||
|
Network Interface |
1RJ45 10M/100M self-adaptive Ethernet Interface |
|
|
USB Interface |
Rear panel:2 x USB2.0 |
|
|
General |
||
|
Power Supply |
12V DC Power Consumption: ≤ 8 W( without HDD ) |
|
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
|
|

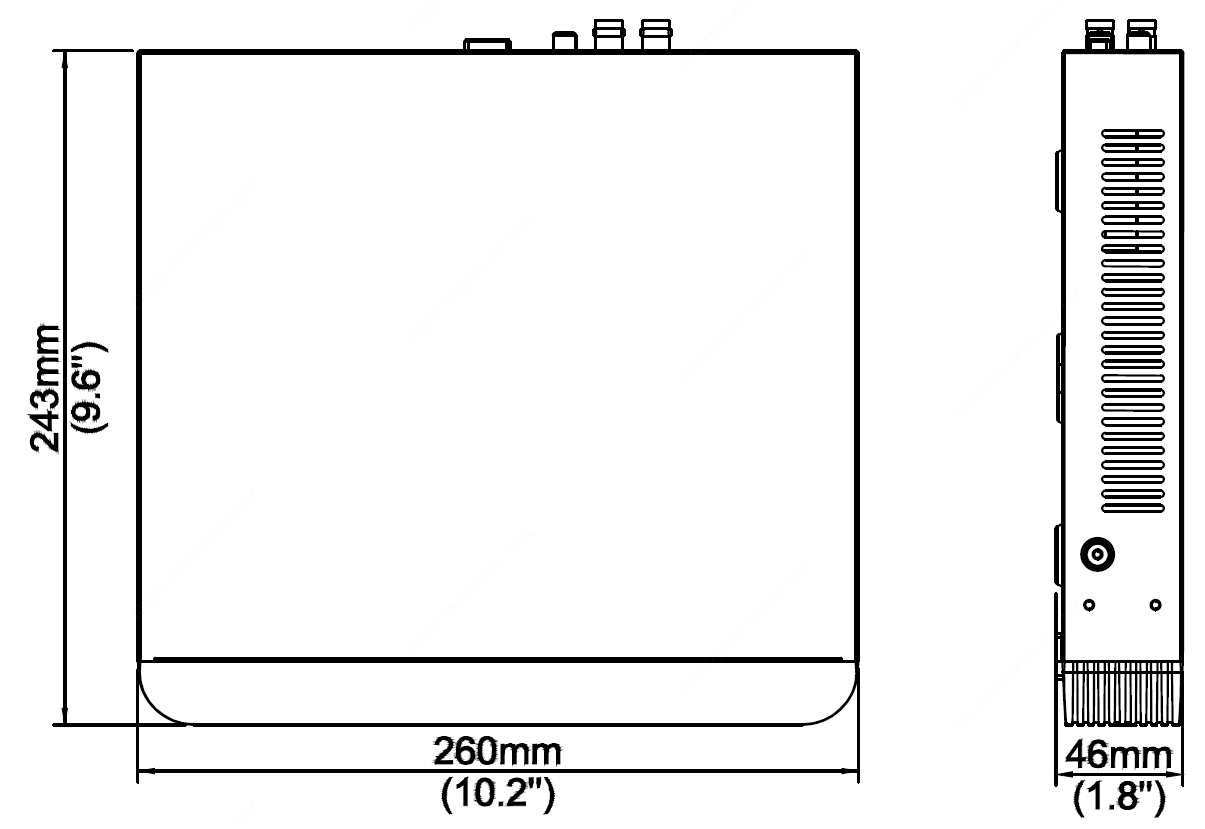

Dimensions(W×D×H) |
260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") |
|
|
Weight ( without HDD ) |
≤1.1 Kg ( 2.42lb ) |
|
