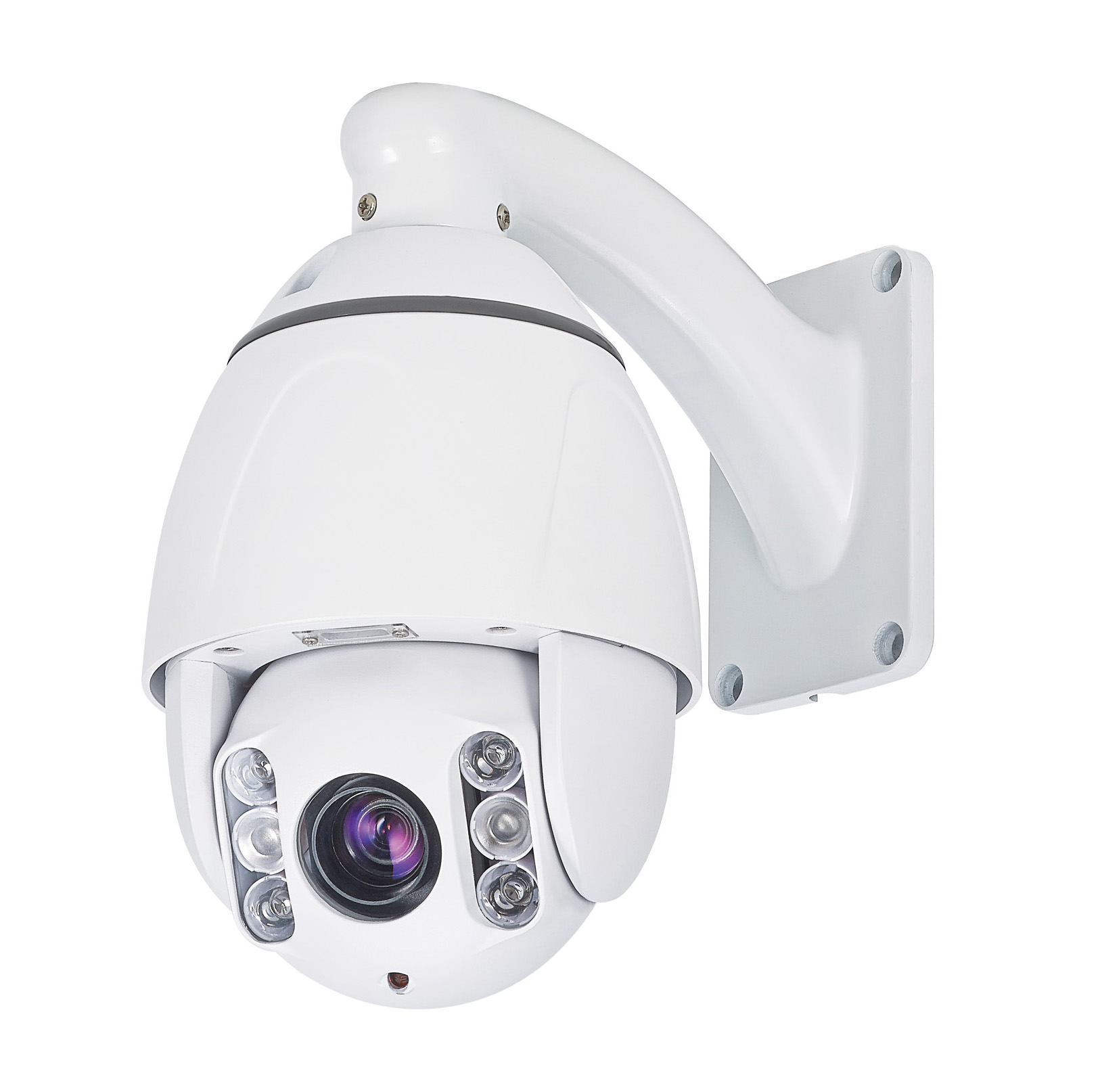

MODLE

VCIRSDW10X 20

VCIRSDW10X 40

Sensor

NVP2441+SONY323

FH8538M+326

Video Output Mode

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS AHD/CVI/TVI/ CVBS

Effective pixels

1080P(1080X1920)

2592x1944

Total pixels

2.0 Megapixels

4.0 Megapixels

Output Pixel

1920*1080@30fps,1920*1080@25fps,

1280*720@60fps,1280*720@50fps

2304x1296@30fps、2592x1520@22fps

2592x1944@15fps

Lens

10X optical zoom f=5mm(W) ~ 50mm(T)

Iris

F1.6 ~F1.8

FOV

6.7° ~67°

Min. illumination

Color: 0.01 Lux   B/W: 0 Lux

D/N

IR-CUT

BLC

Auto

WB

Auto

S/N Ratio

≥50dB（AGC OFF）

TF Card

Support

Audio frequency

Optional

Audio compression standard

G711，PCM

Communications Protocol

TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS，P2P

Compatibility

IE, CMS, HCMS,HIKVISION,UC ONVIF

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Preset Points

128

Pattern Scan

4 groups

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

Operating temperature

Indoor: 0°~ +40°

Pan and Tilt position display

Support

Support ambient light detection

IR illumination on 1-15 grades selectable;

LED

￠16X6PCS

IR distance

up to 60 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Humidity

≤75% Non Condensing

Power

 DC12V ≤2A

Consumption

< 10W

Lightning Protection

Transient voltage 6000V

Interface

1 channel network interface, power input

Size/Weight

2.5KG
