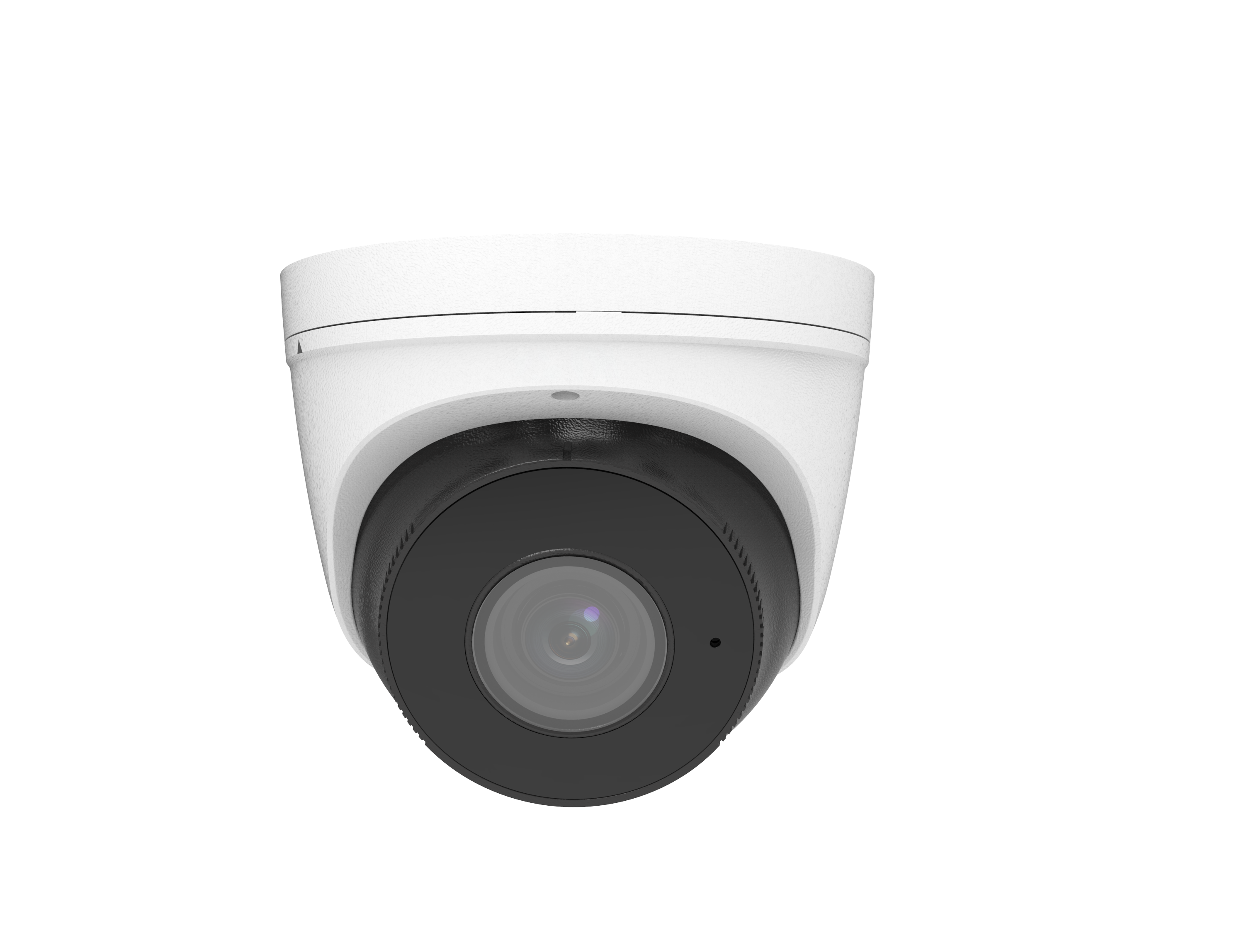

Features:
1/2.7" CMOS, ICR,
2592x1944 25fps,
Ultra 265/H.265/H.264/MJPEG,
Dual stream, DC12V & PoE
2.8-12mm Motorized lens, IP67
IR range: up to 30m*Day/night functionality
*Smart IR, up to 30m (98ft) IR distance
*2D/3D DNR (Digital Noise Reduction)
*Built-in Mic
|
|
WVCD30D5AF |
||||||
|
Camera |
|||||||
|
Sensor |
1/2.7", progressive scan, CMOS |
||||||
|
Lens |
|||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
||
|
2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
|||
|
12 |
270.0 |
108.0 |
54.0 |
27.0 |
|||
|
Angle of View (H) |
102.79°~ 30.86° |
||||||
|
Angle of View (V) |
54.50°~ 17.49° |
||||||
|
Angle of View (O) |
106.94°~35.49° |
||||||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75 |
Rotate: 0° ~ 360° |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||||
|
Minimum Illumination |
Colour: 0.005Lux (F1.8, AGC ON) 0Lux with IR on |
||||||
|
Digital noise reduction |
2D/3D DNR |
||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||||
|
S/N |
>56dB |
||||||
|
IR Range |
Up to 30m (98ft) IR range |
||||||
|
Defog |
Digital Defog |
||||||
|
WDR |
120dB |
||||||
|
Audio |
|||||||
|
Audio Compression |
G.711 |
||||||
|
Suppression |
Supported |
||||||
|
Sampling Rate |
8KHZ |
||||||
|
Storage |
|||||||
|

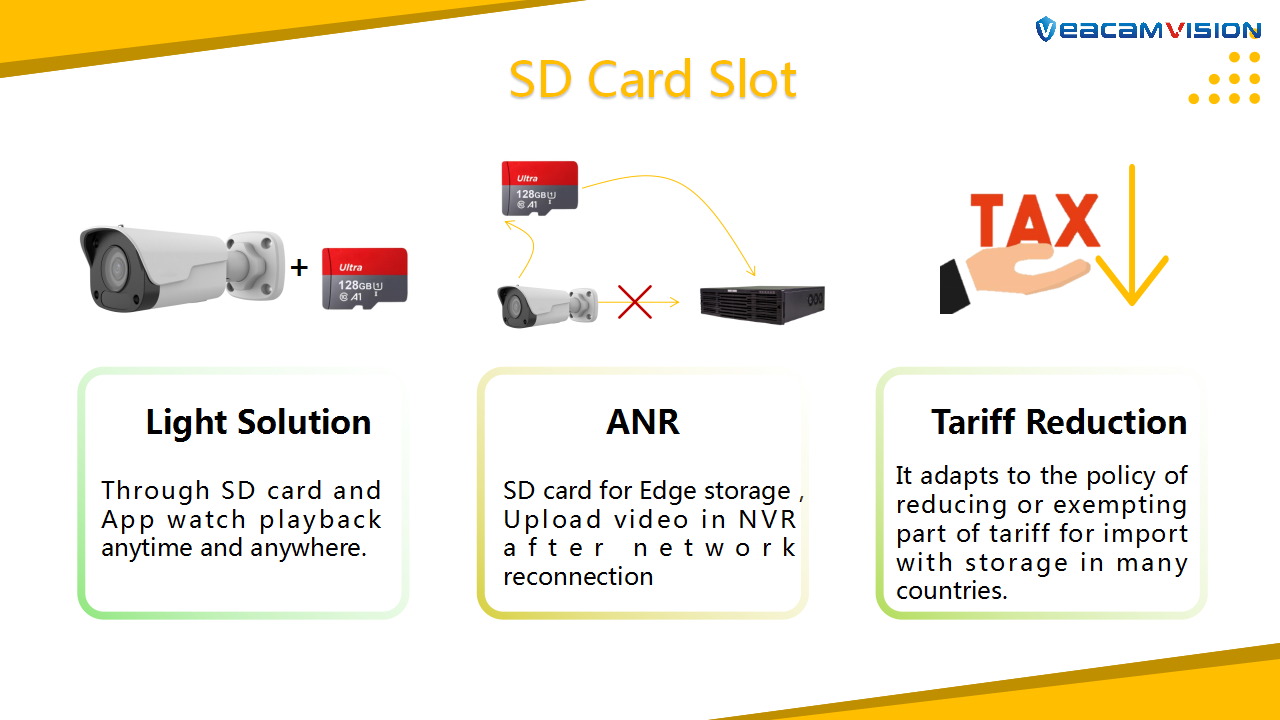

Edge Storage |
Micro SD, up to 256GB |
||||||
|
Network Storage |
ANR,NAS(NFS) |
||||||
|
Video |
|||||||
|
Video Compression |

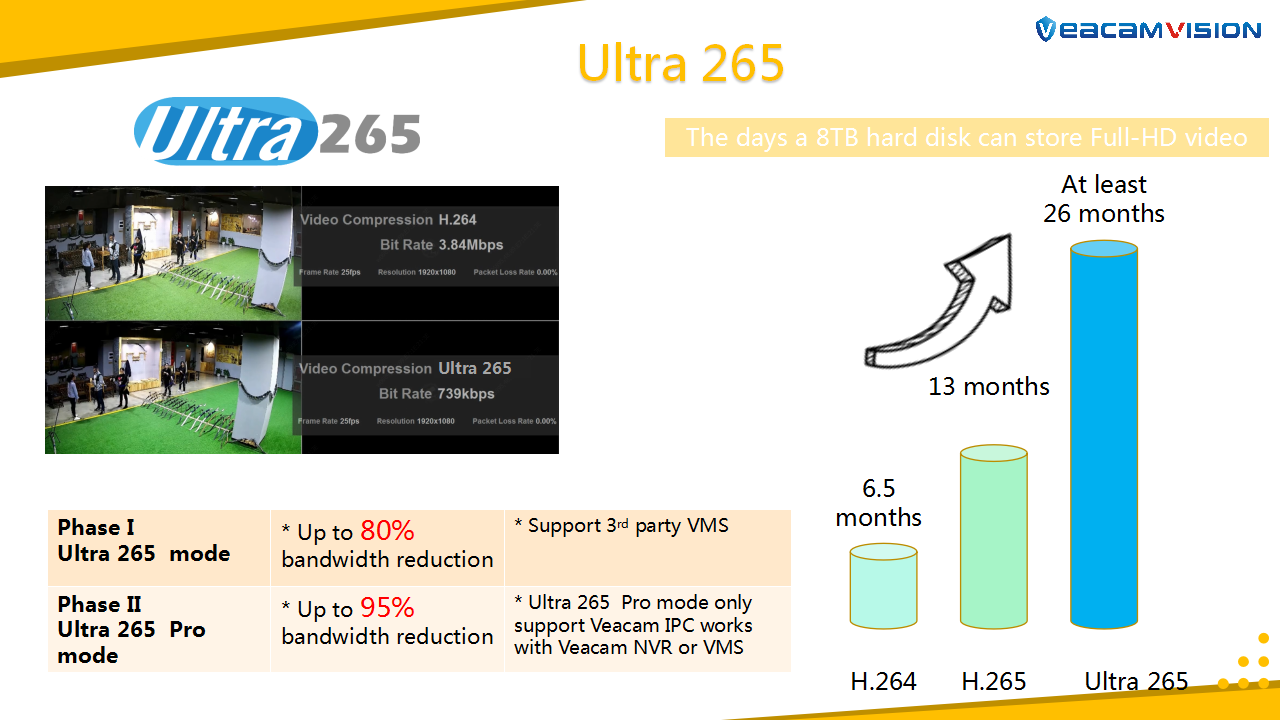

Ultra 265, H.265, H.264, MJPEG |
||||||
|
H.264 code profile |
Baseline profile, Main profile, High profile |
||||||
|
Frame Rate |
Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps;1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
|
HLC |
Supported |
||||||
|
BLC |
Supported |
||||||
|
OSD |
Up to 4 OSDs |
||||||
|
Privacy Mask |
Up to 4 areas |
||||||
|
ROI |
Up to 8 areas |
||||||
|
Motion Detection |
Up to 4 areas |
||||||
|
Smart |
|||||||
|

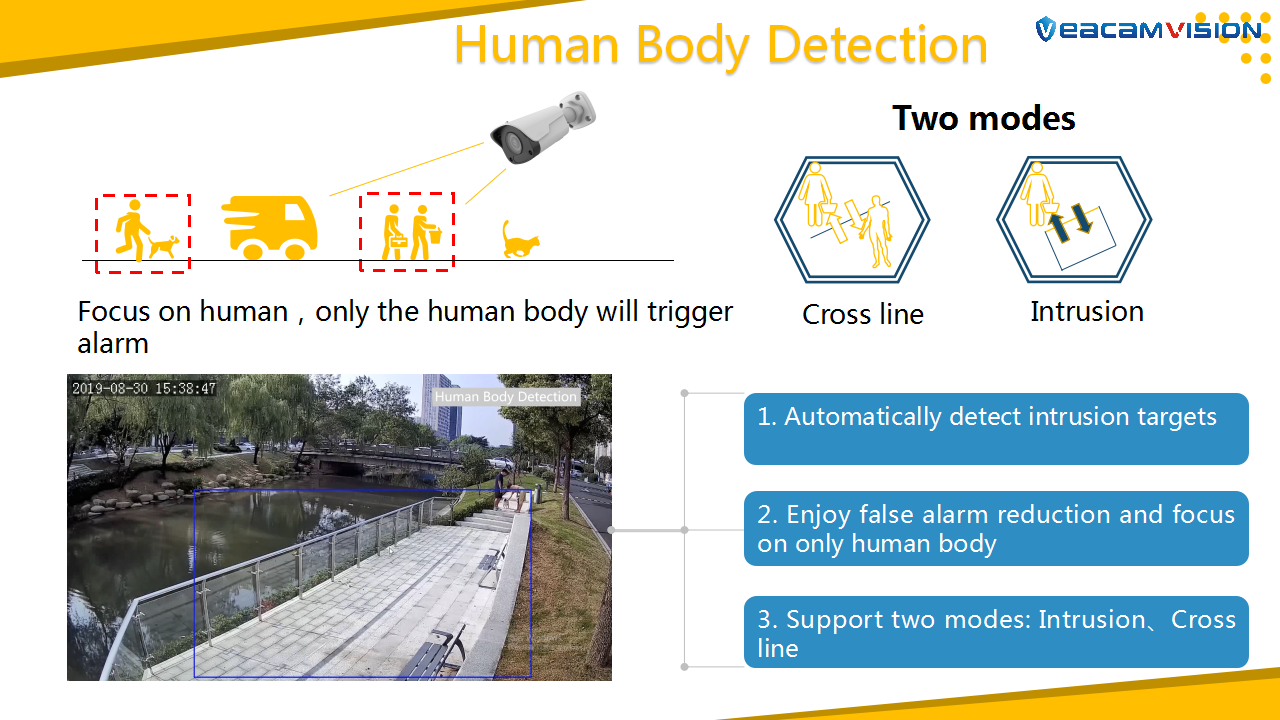

Behavior Detection |

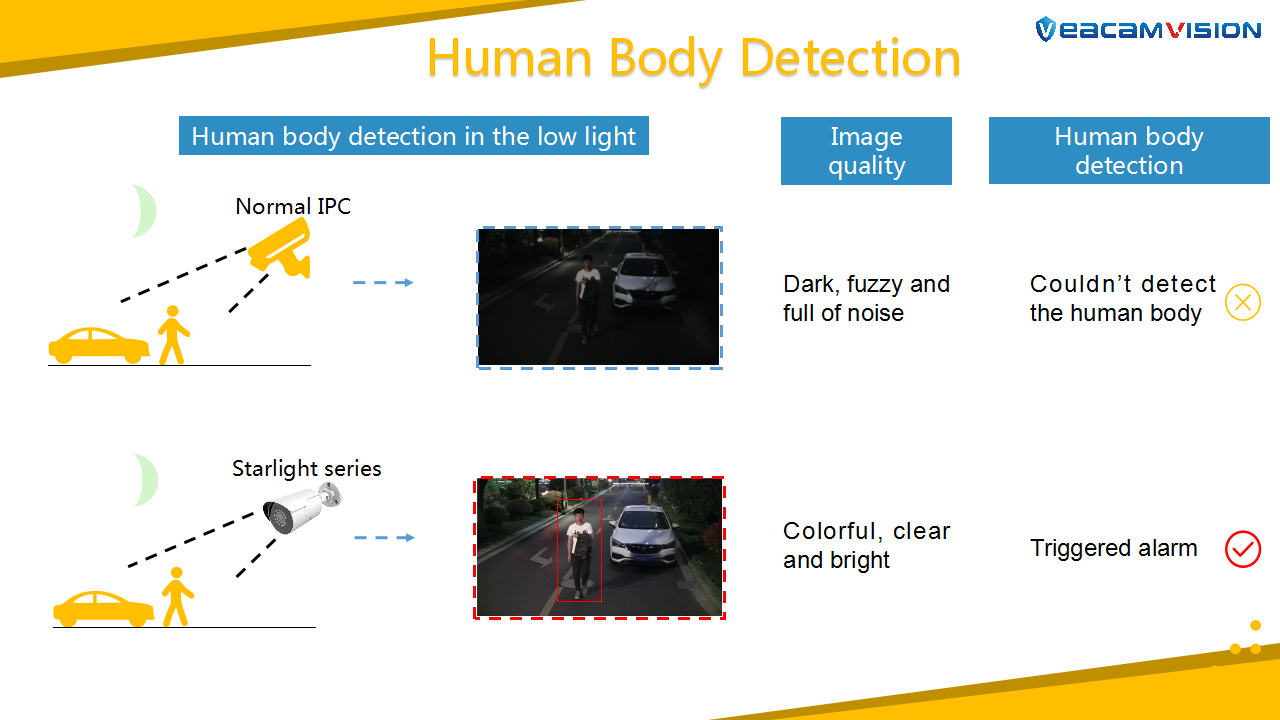

intrusion(based on human body detection) |
||||||
|
motion detection, tampering alarm, audio detection |
|||||||
|
Network |
|||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
||||||
|
Compatible Integration |
ONVIF (Profile S, Profile T, Profile G), API |
||||||
|
Interface |
|||||||
|
Network |
10/100M Base-TX Ethernet |
||||||
|
Built-in Mic |
Supported |
||||||
|
General |
|||||||
|
Power |
DC 12V±25%, PoE |
||||||
|
Power consumption: Max 6.0W |
|||||||
|

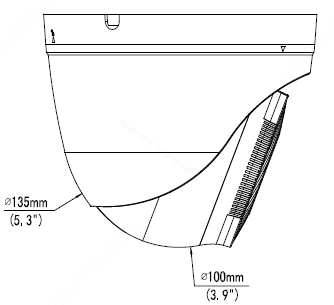

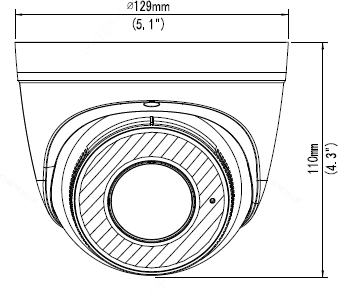

Dimensions (Ø x H) |
Ø129 x 110mm (Ø5.1” x 4.3”) |
||||||
|
Weight |
0.67kg (1.48lb) |
||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
|
Surge Protection |
6KV |
||||||
|
Ingress Protection |
IP67 |
||||||
|
Reset Button |
Supported |
||||||
