Features:

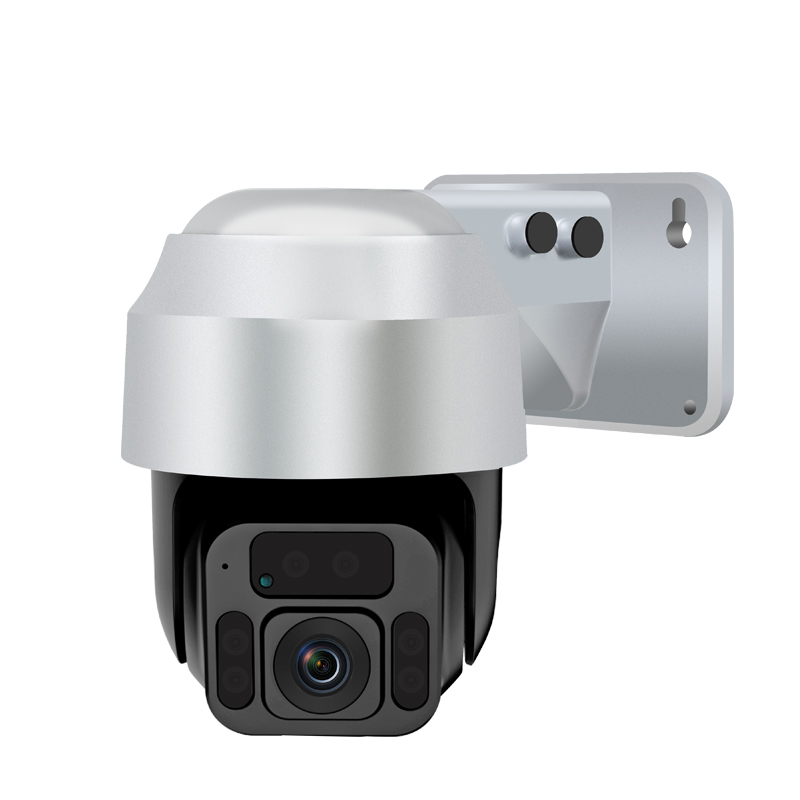

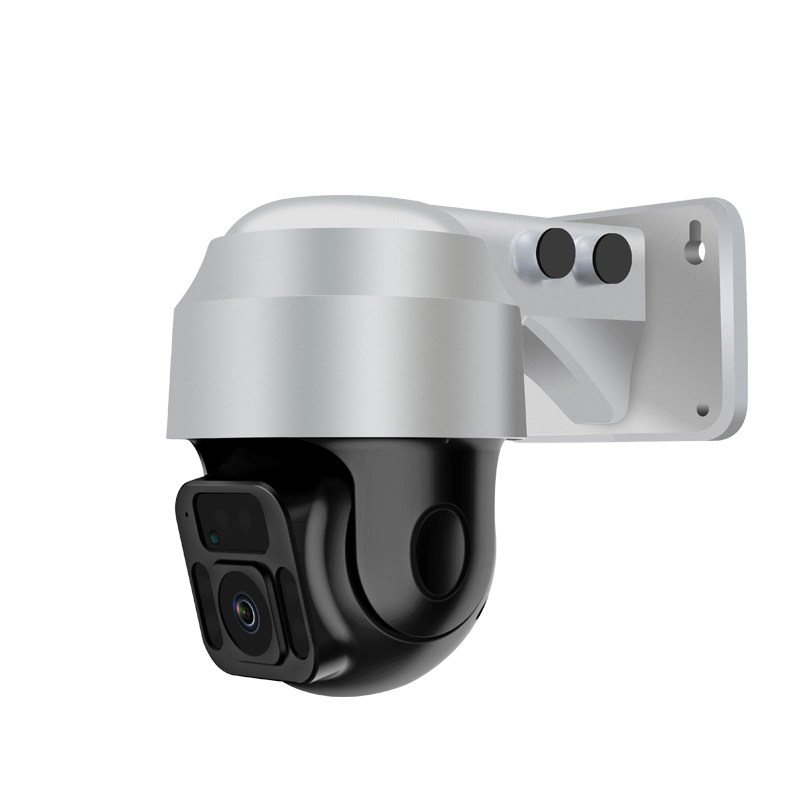

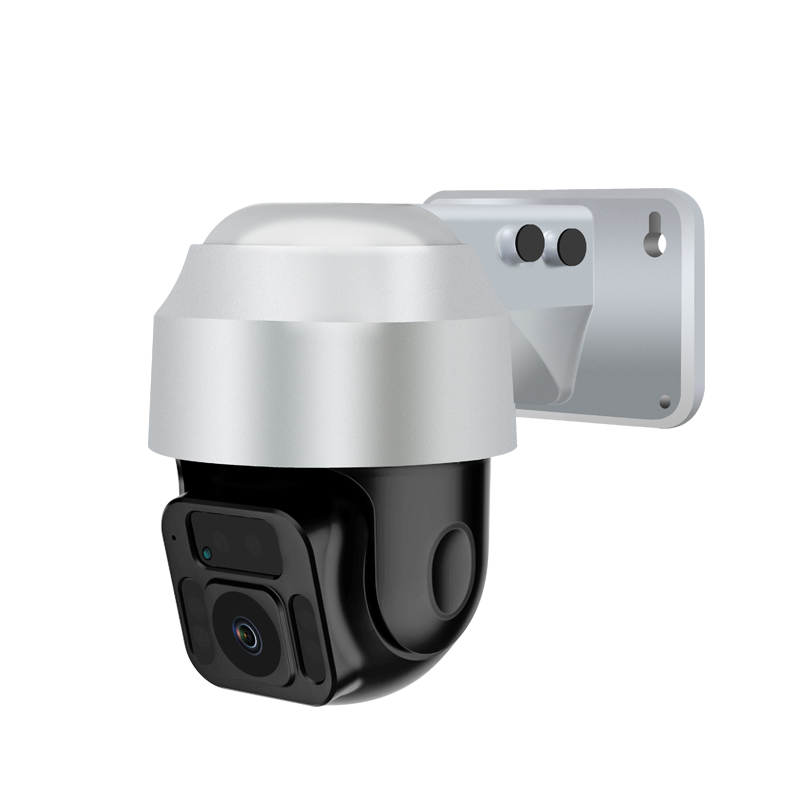

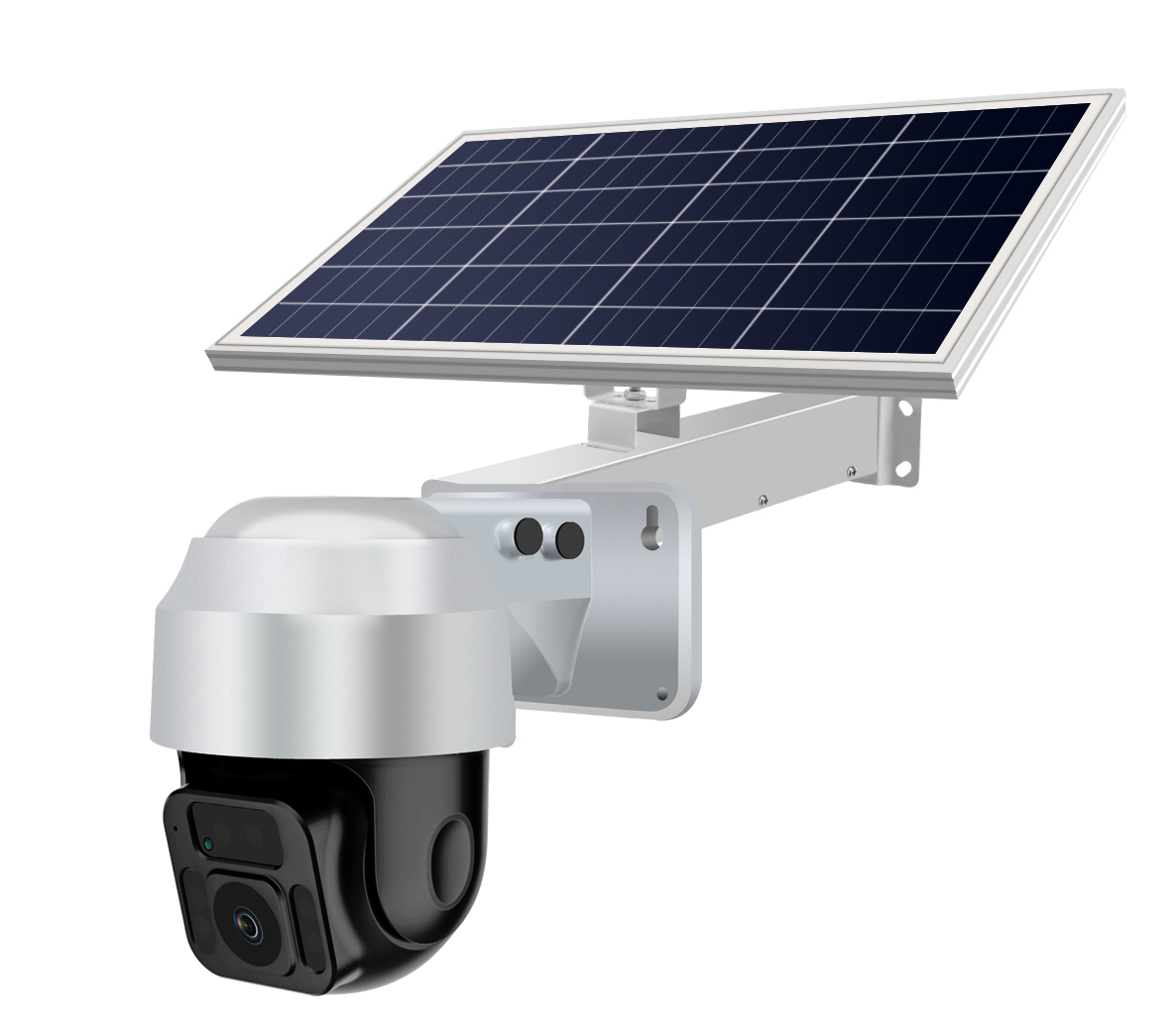

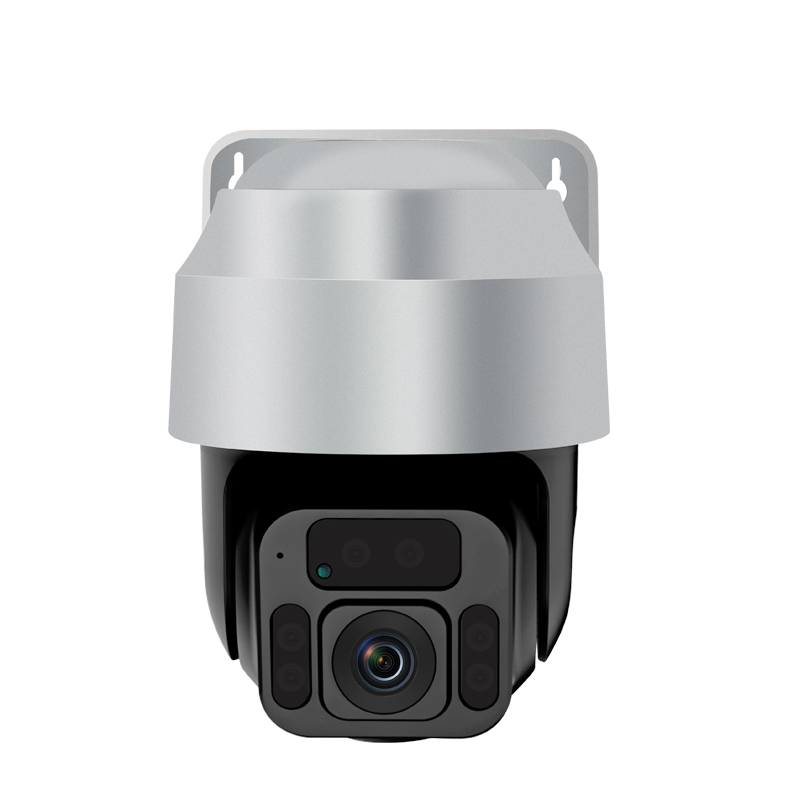

1080P Battery Outdoor Camera

Built-in 4G module, Steble 4G signal

2.0MP, 1080P

IP 66 Waterproof

Online remote view through APP

Two-way audio

Max support 128G TF card

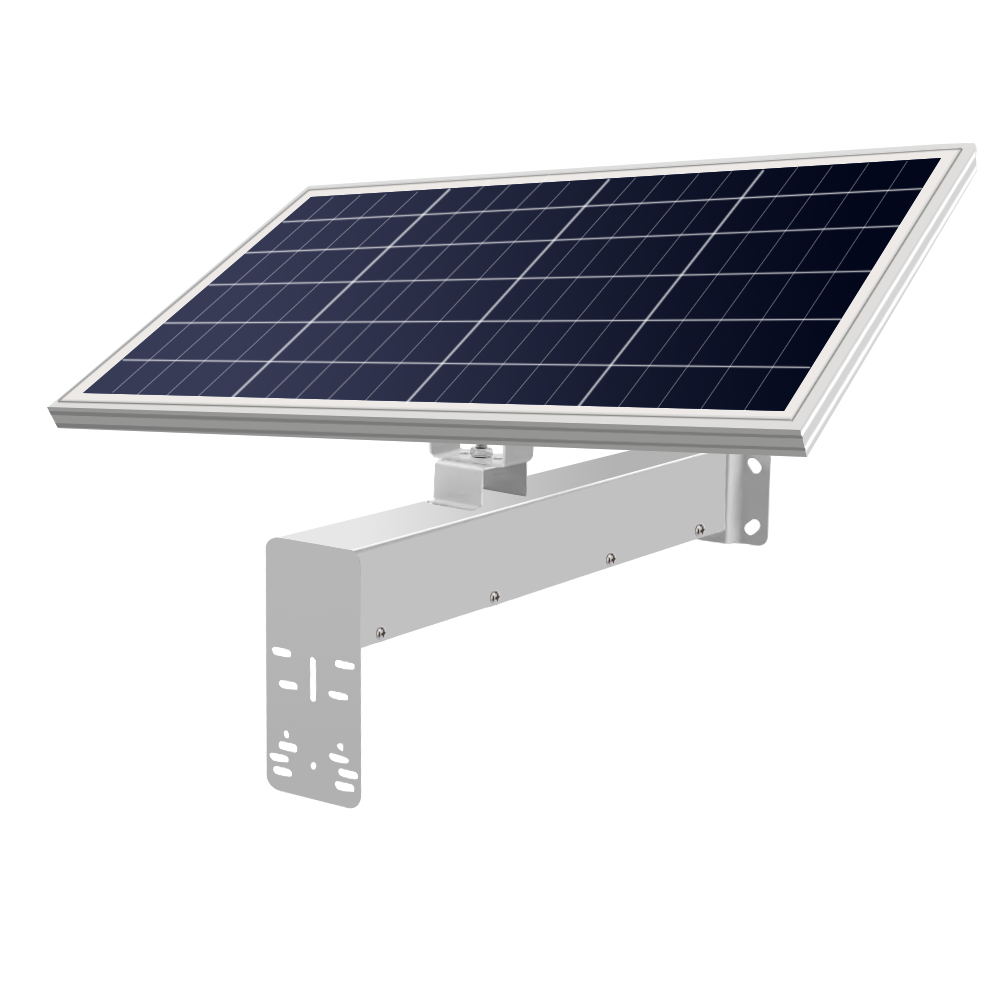

With 30W solar panel

Built-in 30AH Li-polymer battery



sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend



1) The solar charging camera's use high-quality plastic shell and metal front coverWaterproof grade IP66

2) The camera adopts precision processing technology with good sealinghigh sensitivity waterproof ,and it can be used both indoors and outdoors.

3) The camera is powered by a 30AH polymer lithium battery with a total capacity, and is charged by an external high-power 30W solar panel.

4) Ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 365 days;Charging by solar energy, the equipment can be maintained used without maintenance throughout the year

5) Uses 1/3 high-definition photosensitive chip; Picture resolution: 1080p, 2MP;Clear and delicate picture quality  , good color reproduction

6) With ICR double filter switcher, automatic color turn black, built-in 4 low power infrared white light, can effectively improve the night vision sharpness

7) High power 4G module built into the equipment, external professional customized 4G antenna, stronger receiving 4G signal stability, do not drop the line,distance is far, no drop.

8) PIR function: After setting, the human body is detected, and the camera can immediately push the alarm information to the mobile APP.

9) Remote wake-up function, PIR alarm push function, mobile phone app response in time, anytime to see;

10) Built-in pickup, horn, users can monitor through the mobile phone app, and can realize real-time remote video voice intercom;

11) Using High-performance DSP codec chip, the host can deal with a variety of complex situations, rapid response;

12) Good experience of low-power equipment dedicated app, simple operation, full-featured, product settings can be set through the mobile phone app;

13) Supports maximum 64G TF card storage, or select cloud storage to meet different customer requirements. Up to 160 hours of recording and automatic overlay can be set, and you can View alarm video on your phone APP

14) Product support network recording, after configured 4G network, such as network interruption, PIR alarm can be normal triggered and recorded, connected to the network, you can read the recording information;

15) Professional factory production;

16) The horizontal angle of the pan/tilt ball machine is 320°, and the vertical angle is 90°.



Operating system

Linux

Image sensor

1/3 million pixel CMOS

Minimum illumination

Color 0.6 lux@f1.2

Day and night mode

Ir-cut Double Filter Automatic switching,LED light start

Lens

3.6MM million HD lens

Video compression

H.264, support dual code flow

Video mode

HD/SD

Maximum image size

Main stream 1920x1080; sub-code stream: 640x480;

Resolution

1080P: 2MP

Frame rate

25 Frames

Audio coding

G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function

Audio input

Built-in mic

Audio output

Internal speaker

Real Standby

Built-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA

Wireless network

2.4GHzIEEE 802.11b/g/n

Storage Features

Support Micro SD card storage, Max 64G

Intelligent Alarm

PIR alarm, effective distance of 8 meters

Infrared lamp

High performance LED lights ,effective distance of 15 meters

Battery

Powered by 30AH polymer lithium battery, charge voltage: 5v2a

Standby time

365 days

Power

0.75W (work) 0.0025W (standby)

Working environment

10°c~60°c/20%~85% (non condensation)
