Mode

VC-IP5962-TH

Thermal

Image Sensor

Vox Uncooled Focal Plane Arrays

Resolution

256x192

Pixel Interval

12pm

NETD

Less than 60 mK (@25°C.F#=1.1)

Aperture

F1.0

Field of View

35° x 27° (H x V)

Optical

Image Sensor

1/2.8" 2.0M Pixel CMOS

Resolution

1920x1080P

Min. Illumination

Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)

Field of View

84° x 45° (H x V)

Focal Length

4mm

Shutter Speed

1s to 1/100,000s

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp

Day& Night

ModeiR cut filter with auto switch

WDR

80 dB

Feature

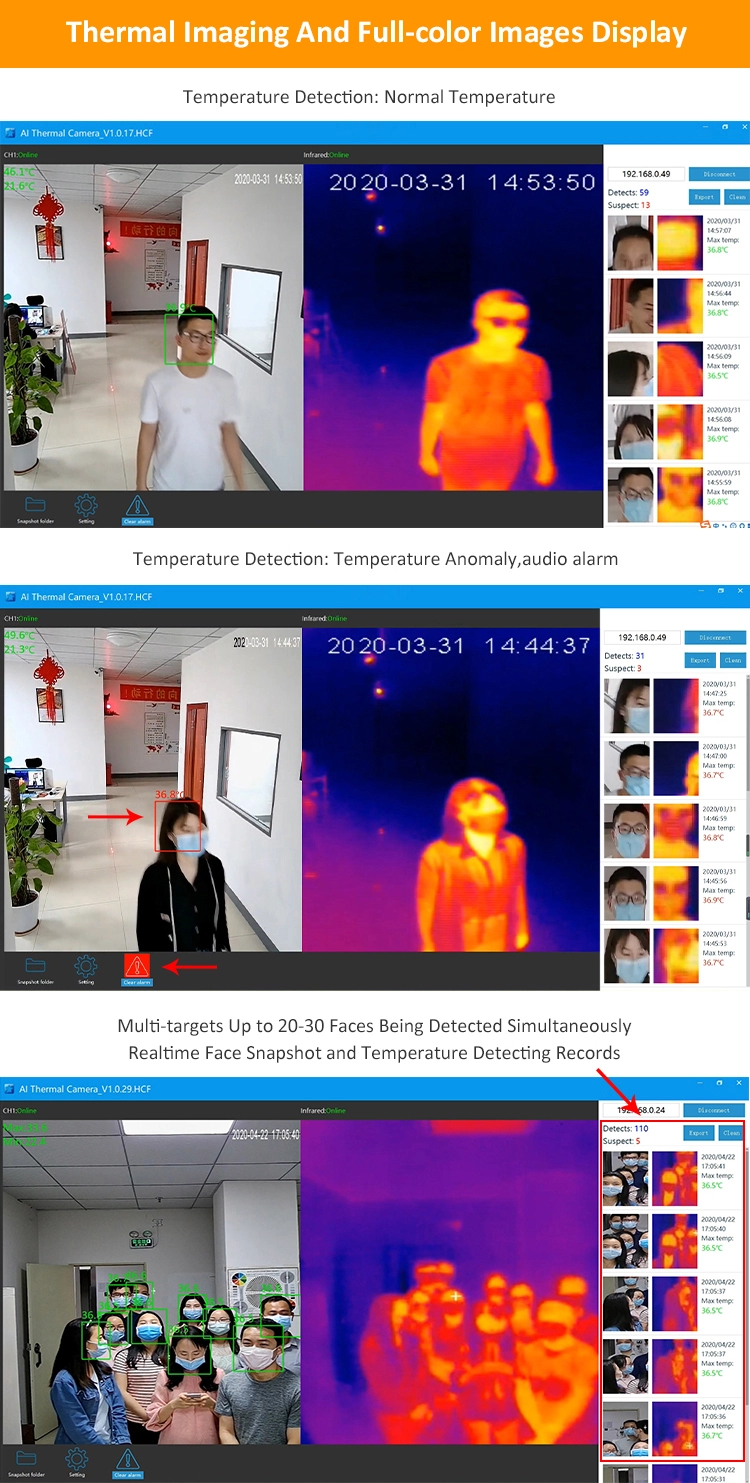

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Picture in Picture

Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function

Face snapping

Built-in deep learning Al algorithm, Supports simultaneous detection of

20-30 faces

Temperature Measurement

Support global and local temperature

Temperature Range

From-15°C to +150°C

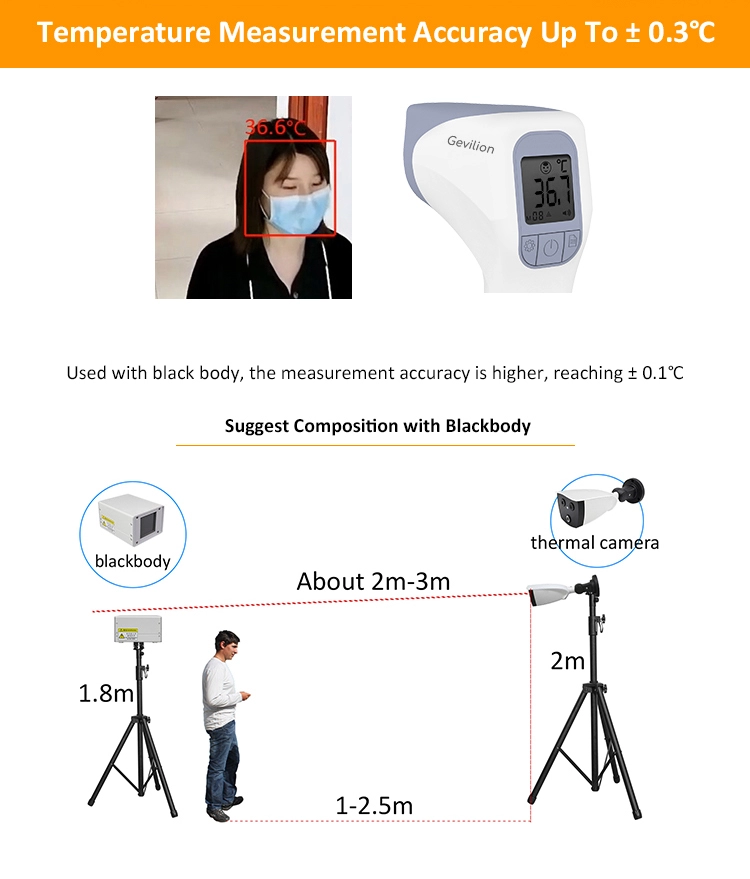

Temperature Accuracy

Target temperature 35°C A 38°C ±0.3 °C

Target temperature 20°C A 33°C ±0.6 °C

Target temperature 38°C A 50°C ±0.6 °C

Network

Main Stream

Thermal: 25fps(1920 x 1080, 1280 x 720)

Sub Stream

Thermal: 25fps(704 x 576, 352 x 288)

Video Compression

H.264 (Baseline/Main/High Profile) /MJPEG/

Audio Compression

G 711u/G711a/G.7221/MP2L2/G.726/PCM

Protocols

TCP/IP, , GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP

API

(Profile S, Profile G, Profile T), SDK

General

Web Client Language

languages English, Chinese

Power

DC 12V, 0.65A

Work Temperature/H umidity

From -20°C to 55°C; Humidity: 95% or Less

Protection Level

IP66

Dimension

246 mm x 101 mm x 81 mm (with bracket)

Weight

Approx. 1.0 kg
