Features:

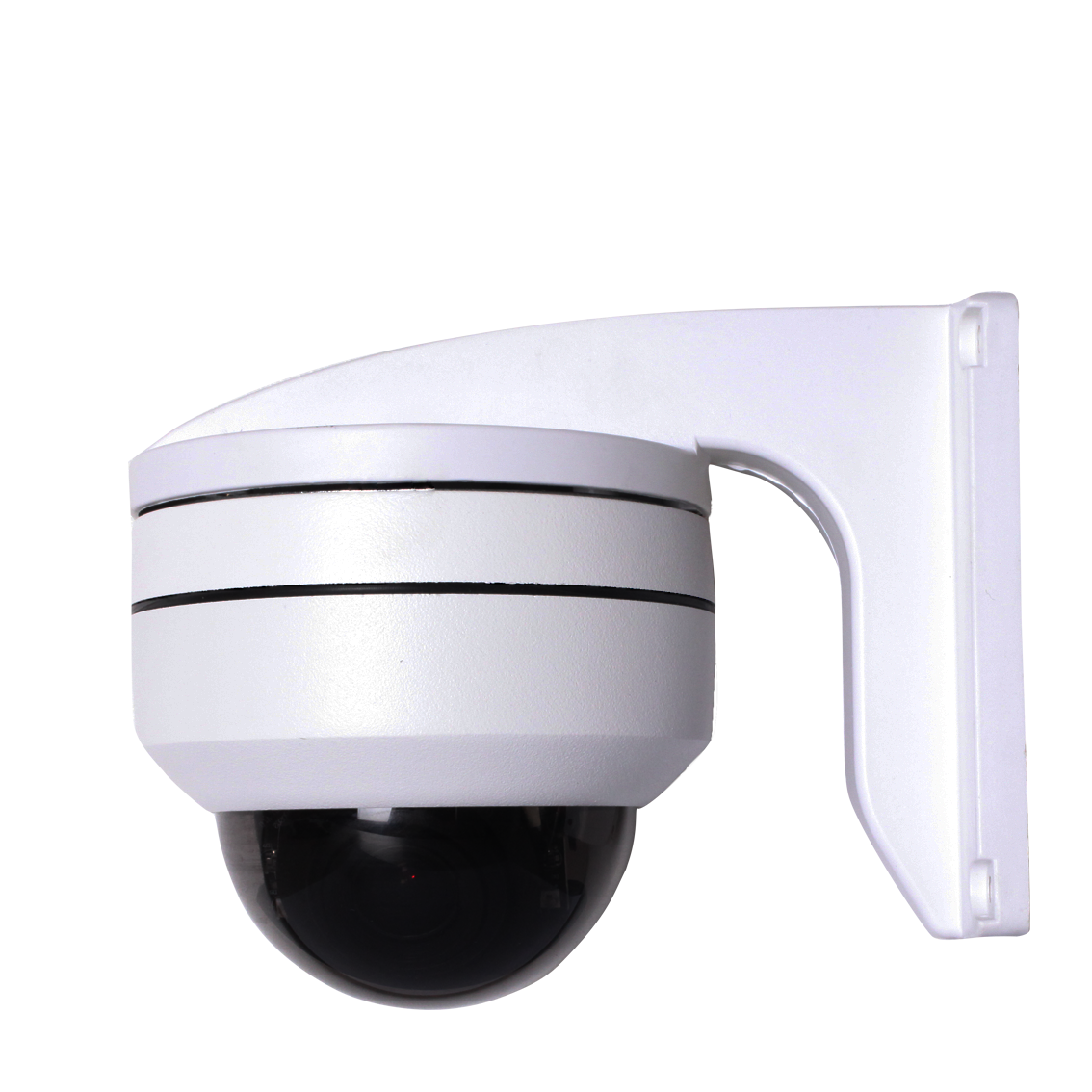

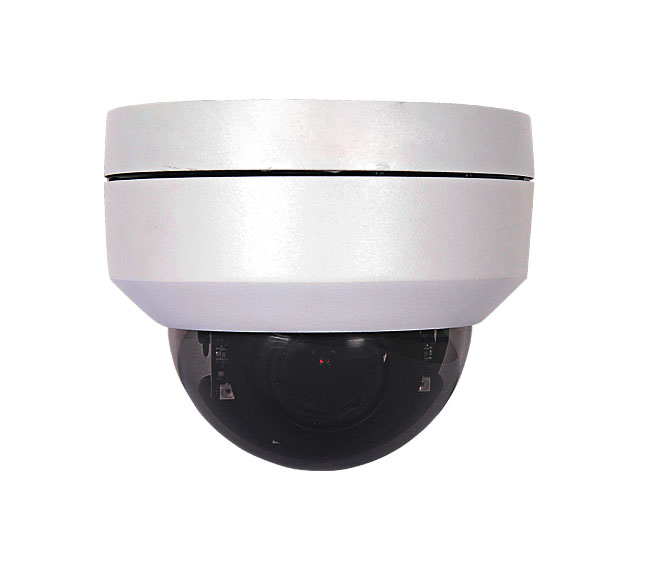

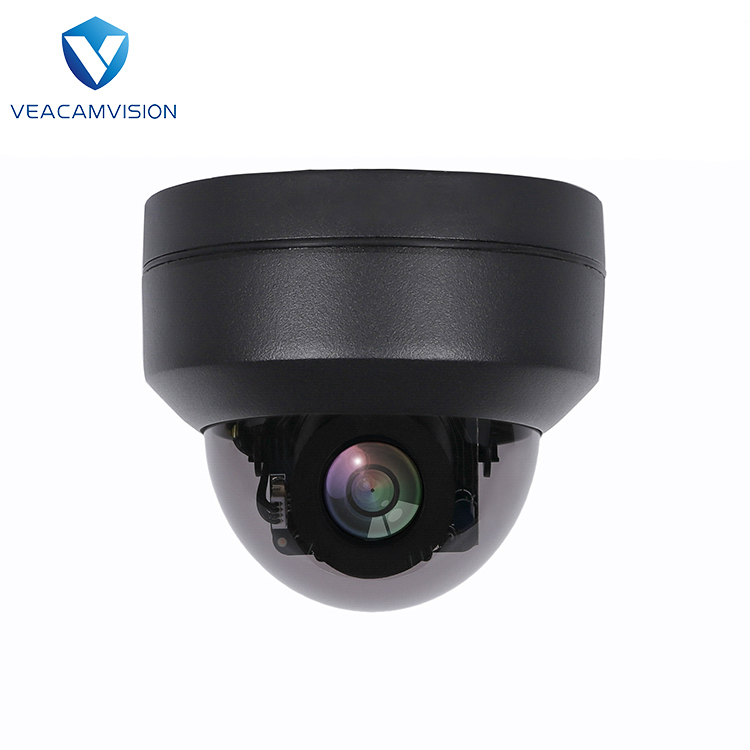

* 2.5"Vandalproof Dome Camera,IP66.IK67
* IR range reach up to 35 Meters
* Pan/Tilt/Zoom ,A-B scan, tour available
* ONVIF GB/T28181;Support P2P function
* Support H.265/MJPEG
* Compatible with HIKVISION/DAHUA
* Support audio for optional、POE、Starlight



sales@veacam.com
  • Details
  • Specification

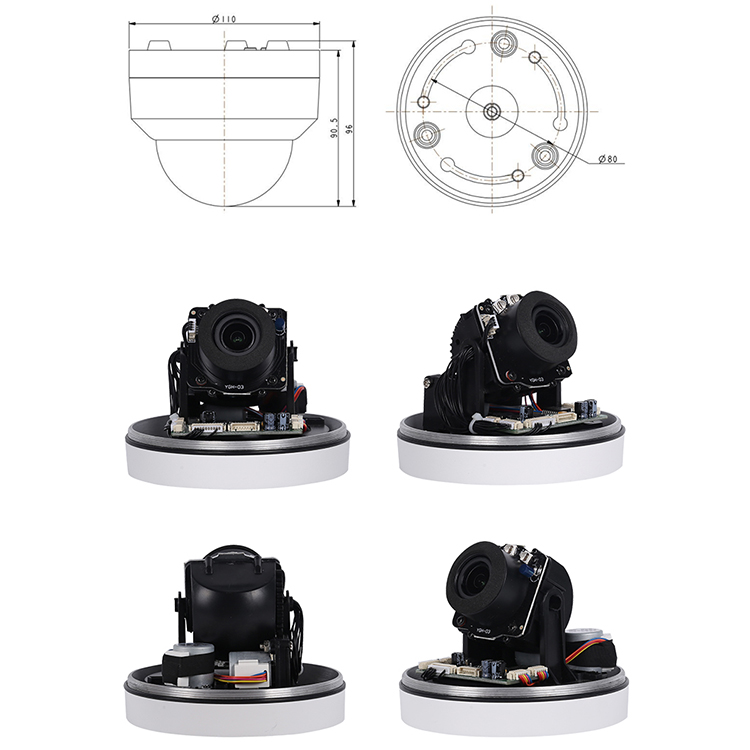

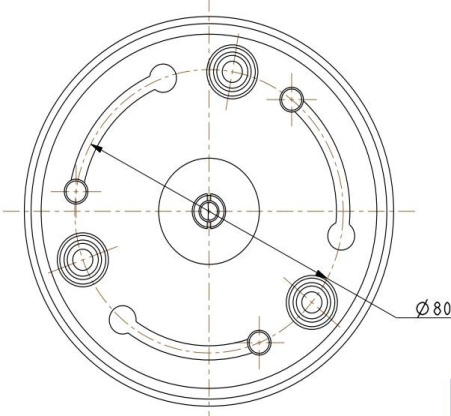

  • Drawing
  • Enquiry
  • Recommend


Camera
Module No. WVC02AR4X20 WVC02AR4X50
Pixel 2MP 5MP
Sensor 3516E+Sony307 3516D+AR0521
Lens 4X=2.8-12mm 4X=2.8-12mm
D/N IR-CUT
BLC Auto
WB Auto
S/N Ratio >50dB
Communications Protocol  TCP/IPHTTP NTPIGMP DHCPUDPSMTPRTPRTSPARPDDNSDNS,PPPoEP2P
Software Control IE, CMS, Management Platform
audio compression G711, PCM
Voice intercom optional
Mobile View(optional) Android  iPhone
Pan Range 0º-355º
Tilt  Range 0-70º
Pan Speed 0-25°/s
Tilt speed 0-20º/s
Preset Points 220
Guard Tours 3 groups ( each group 16 presetdwell time and speed selectable)
Guard Points Max.16 points, dwell time user selectable
AB scan range any point in range:0º~70º and 0º-355º
AB scan speed 1-9 grades
Operating temperature Outdoor: -30℃~+60℃
Operation menu English
Auto Control IR LED PWM
Support ambient light detection IR illumination on 1-15 grades selectable;
IR distance up to 45 meters
Humidity ≤95% Non Condensing
Consumption ≤10W
Lightning Protection Transient voltage 3000V
Related validation IP66,CE,FCC,RoHs
size(CM) 14.5*14.5*13
weight(KG) 1.2
24Pcs 1BoxBox size 65*34*47
24Pcs 1BoxBox Weight  28.8






Please enter your inquiry details such as model no., lens, color,quantity,ect .
