Features:
*4.5" HD-IP Medium Speed Dome Camera
*Weatherproof Outdoor IP66
*42PCS*6 IR Led , IR Range:60~80M
*Pan Range: 0°~360° Continue; Tilt Range: 0°~93° Flip
*Pan Speed: 80°/sec; Tilt Speed: 40°/sec
*P2P Support ,HD-IP digital interface output,
Support H.265/ H.264/MJPEG compression,
Seamless docking Hikvision, UOB, XM( CMS),
*Lightning Protection: Transient Voltage 6000V
| Camera | ||
| Module NO | WVCPTZ45MA10X2 | WVCPTZ45MA10X5 |
| Sensor | 3516E+SONY307 | 3516D+AR0521 |
| Optical Zoom | 10X | 10X |
| Effective pixels | 2.0MP | 5.0MP |
| Output Pixel | 2592x1944、2592x1520、2304x1296、1920x1080、1280x960、1280×720、720×576、640×480 | |
| Iris | F1.6 ~F2.7 | |
| Angle of view FOV | H：51.8°（W）～5.86°（T） V：39.1°（W）～4.4°（T） | |
| Min. illumination | Color: 0.01 Lux B/W: 0 Lux | |
| BLC | Support | |
| WB | Indoor/Outdoor/Auto/Manual | |
| D/N | IR-CUT | |
| 2D NR | Support | |
| S/N Ratio | ≥50dB | |
| Dome | ||
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |
| Software Control | IE, CMS, Management Platform | |
| Video compression | H.264/H.265/M-JPEG | |
| Rotation Range | Pan: 0°~360° , Tilt: 0°~93° | |
| Rotation Speed | Pan: 0~80°/s , Tilt:0~40°/s | |
| Auto Flip | Horizontal 180°, Vertical 93° | |
| Preset Points | 220pcs preset( Dwell time 01-60s interval available) | |
| A-B Scan | User programmable (scan speed 1-64 levels setting available ) | |
| Guard Tours | 3 groups (Max.16 points, dwell time user selectable) | |
| PWR On Action | Memory/Tour 1/360° scan/A-B scan/Park 1/None | |
| Operating Temperature | -40℃~+60℃ | |
| Power | DC12V 4A / (AC24V 3A optional ) | |
| Power Consumption | ≤ 25W | |
| Auto Control IR LED | PWM | |
| IR distance | Up to 60~80 meters | |
| LEDs | 6 PCS Array 42Mil IR LED | |
| Lightning Protection | Transient voltage 6000V | |
| Communication mode | RS485 (+/-) | |
| Connection | Coaxial Cable | |

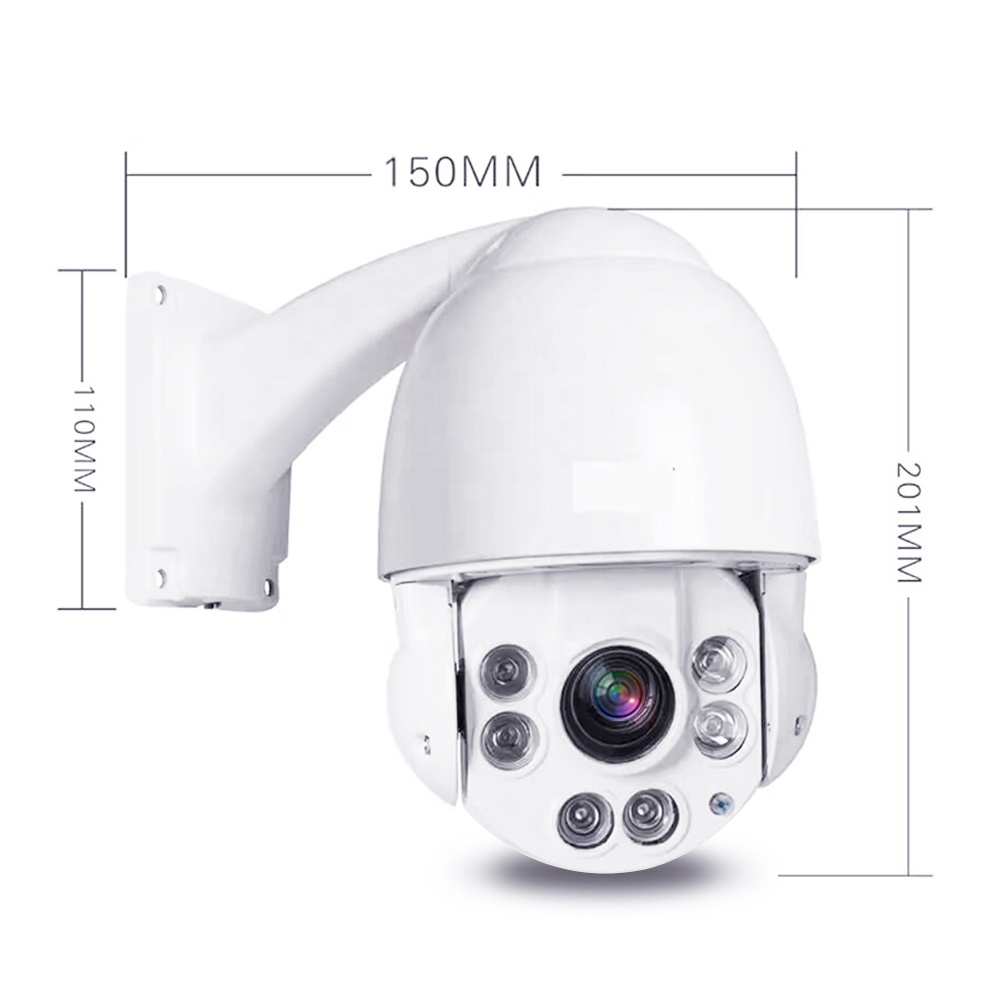

| Size/Weight | 2.65KG（N.W）,4.9KG（G.W） | |
| Related validation | IP66,CE,FCC,RoHs | |
| Package Size（CM） | 25*21.5*41 | |
Please enter your inquiry details such as model no., lens, color,quantity,ect .
